16 HD-SDI Magic DVR Replacement - Thursday, April 29, 2021
16ch HD-SDI EX-SDI DVR is now available, up to 8MP EX-SDI and up to 4MP SDI camera support now in stock as a Magic DVR replacement.

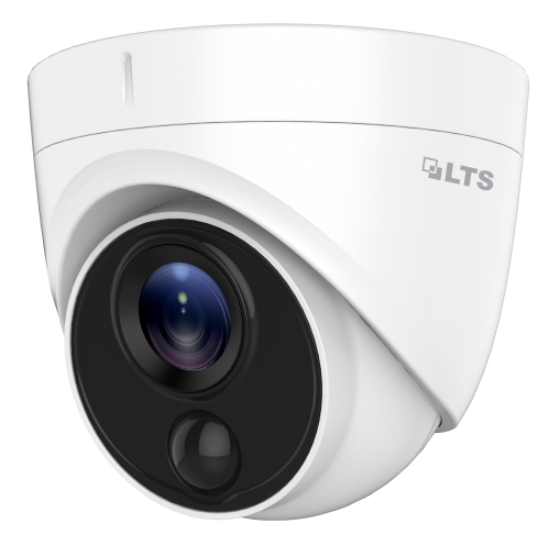

Platinum 5 MP PIR Turret Camera - 2.8mm (CMHT1752N-28PIR)

SKU: 121761

Accepted Payments

LTS Platinum CMHT1752N-28PIR 5MP Turret camera with PIR detection, this weather proof camera has Passive infrared sensor to detect movement, great vision coverage and a wide 2.8mm lense
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • High Definition Turret 5MP HD-TVI Camera
  • 2.8mm Fixed Lens
  • 2560x1944@20fps
  • 0.01 Lux, Smart IR
  • 2 Matrix IR 2.0 LED up to 66ft
  • UTC Control to OSD Menu
  • DC 12V
  • IP67
  • PIR detection, visual alarm
Image Sensor 5MP CMOS
Signal System NTSC/PAL
Effective Pixels 2560(H)*1944(V)
Min. Illumination 0.01 Lux, 0 Lux with IR
Lens 2.8mm; FoV: 85.5°
Shutter Speed 1/30 (1/25) to 1/50,000 s
Day & Night ICR
Synchronization Internal
Video Frame Rate 2560 x 1944@20fps
HD Video Output 1 Analog Output
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
White Light Alarm/Off
AGC Support
D/N Mode Color/ BW/ SMART
White Balance ATW/ MWB
BLC Support
Function DNR, Mirror, SMART IR
Working Temperature
-40 °F ~ 140 °F (-40 °C ~ 60 °C)
Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 4.5W
Weather Proof Ratings IP67
IR Range Up to 66ft (20m)
Dimensions  Ø 4.32" × 3.53"(Ø 109.8 mm × 89.75 mm )
Weight 0.68 lbs (310g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Fast shipping, easy to install
Great camera, easy to install and picture quality is fantastic and my wife is extremely happy :)
From: Guest | Date: 8/14/2019 12:07 AM
Was this review helpful? Yes No (0/0)
Products specifications
Camera Features Outdoor
Lens 2.8mm
Resolution 5MP
Technology HD-TVI
