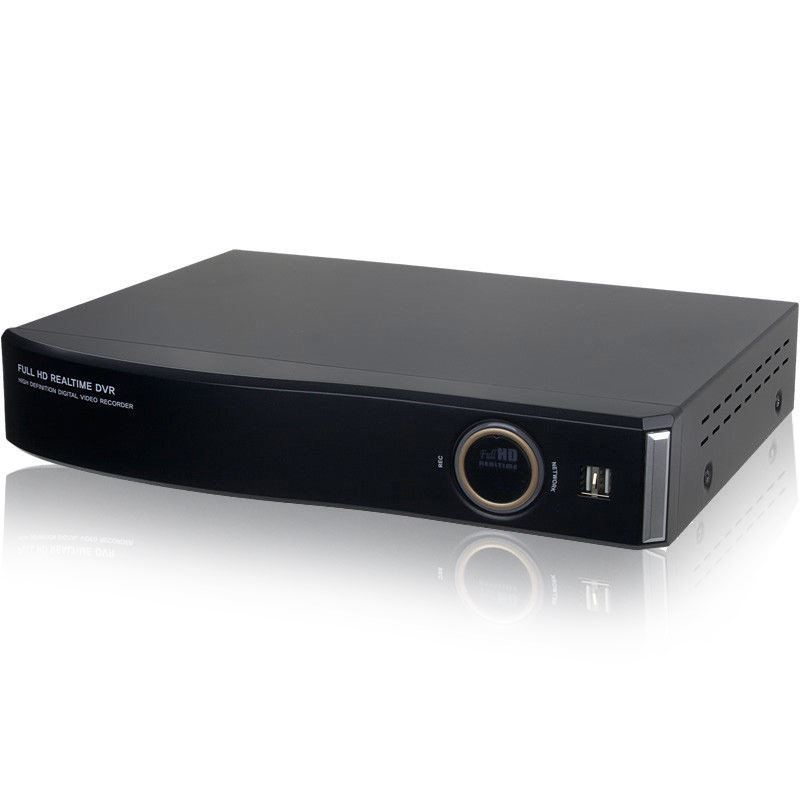

16CH 1080p HD-TVI Security MAGIC Lite Series DVR System (TVST-MAGIC-TL16)

SKU: 141500

MPN: TVST-MAGIC-TL16

Availability: Out of stock

2 review(s) | Add your review

Hard Disk: storage calculator

Call for price

Qty:

16Ch HD-TVI Hybrid DVR, Supports Both TVI and Analog 960H REAL-TIME Live / 1080p@240FPS Pentaplex Recording / 1080p@120FPS Playback • H.264 • Programmable Multi-CH Spot Out • iPhone® Android® App Available. Crystal Clear 1080p Live Video • Dual Streaming • Mac Compatible • POS Interface ready • RS-485 for PTZ control • DDNS Support

Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)

Details
Product inquiry
Reviews
Support

Full GUI with Alpha Blending
Individual Setting of Resolution, Frame Rates & Picture Quality
Instant Replay
Digital Zoom (Live & Playback)
Mouse Control
Weekly Scheduler with Holiday by 10 min Setting
Covert, Disable & Private Function of Cameras
Motion Detection with 576 Area Settings
Relay Alarm Output
PTZ Control by RS-485
Daylight Saving Time and Network Time Setting
Multi-User Authority up to 8 Users
De-interlacer upon Live & Playback
22 Languages with Full Graphic
Individual Network Port Setting
Auto Deletion
Import and Export the Configuration
POS Interface
Dual CODEC Engine for Independent Video Transmission
Interactive Setup via Network

TVST MAGIC-TL16
Video	Camera Input	16 BNC
	Individual HD/Analog	All Hybrid
	Available Source	TVI 720p25,30/1080p25,30/Composite/960H/Mixed
	Output	1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT)
Audio	Audio Input	4 RCA
Audio	Output	1 RCA
Sensor In		4 (NC, NO selectable)
Alarm out		1 Relay
Operating System		Embedded Linux OS
Display	Speed	Real Time
	Resolution (Pixel)	1280×1024, 1280×720, 1920×1080
	Screen Split	1 / 4 / 6 / 8 / 9 / 13 / 16
Recording	CODEC	H.264 / JPEG for 3G, Dual CODEC
	Resolution (Pixel)	1080p (1080p25,30) 720p (720p25,30) 960H, 720H (Composite, 960H)
	Picture Quality	4 Steps (Super, High, Medium, Low)
	Speed	NTSC : 480fps@720p / 240fps@1080p PAL : 400fps@720p / 200fps@1080p
Playback	Display	1 / 4 / 8 / 9 / 13 / 16
	Search Mode	Calendar, Event ,POS , Panorama, Thumbnail
	Speed	NTSC : 120fps@1080p PAL : 100fps@1080p
	Fast/Slow speed	Normal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network	Network Interface	Gigabit Ethernet
	Speed	100fps@720p
	Protocol	TCP/IP, HTTP, DHCP
	Application	Windows 7 / 8 (PC Client system & IE)/MAC
	Web Browser	Internet Explorer, Safari, FireFox, Chrome
	Smart phone App	MR. Patrol : Android, iPhone for Live & Search
Backup	Interface	USB 2.0 × 2
	Backup device	External HDD, CD & DVD-RW, Network, Thumb Drive
The Number of HDD		2 SATA (No capacity limit ; 4TB of more)
Others	Power Consumption	60W
	Operating Temperature	5 ~40°C(41~104°F)
	Relative Humidity	Maximum 80% non-condensing
	Dimension	13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm

Your name

Your email

Enquiry

Write your own review

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Existing reviews

Bought 7 so far Great DVR software and hardware

The only issue I've had with any of the DVRs I purchased of this model is once with the power adapter, other than that its a great DVR

From: Guest | Date: 6/17/2019 2:23 PM

Was this review helpful? Yes No (0/0)

I love this system, very easy to use

I'm 50 years old and finally found a system easy for me to use, works great on my phone as well.

From: Guest | Date: 6/3/2020 5:05 PM

Was this review helpful? Yes No (0/0)

Mobile Apps

Products specifications

Number of Channels	16Ch
Technology	HD-TVI
