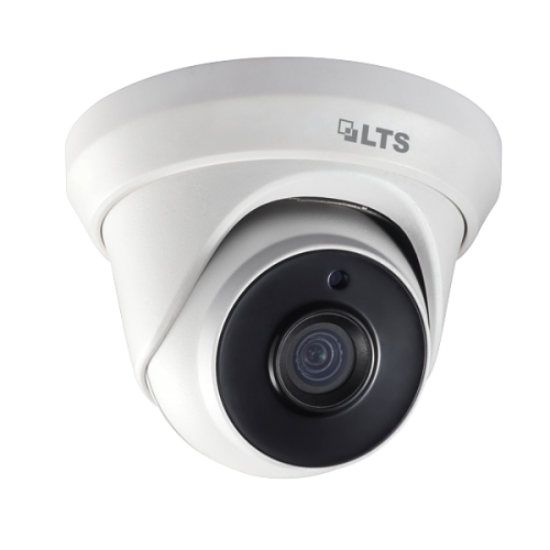

- High Definition Turret 5MP HD-TVI Camera
- 2.8mm Fixed Lens
- 2560x1944@20fps
- 0.01 Lux, Smart IR
- 2 Matrix IR 2.0 LED up to 131ft
- UTC Control to OSD Menu
- DC 12V
- IP67
- 4-in-1 Video Output
| CMHT1752N-28F CAMERA | |
| Image Sensor | 5MP CMOS |
| Signal System | NTSC/PAL |
| Effective Pixels | 2560(H)*1944(V) |
| Min. Illumination | 0.01 Lux, 0 Lux with IR |
| Lens | 2.8mm; FoV: 85.5° |
| Shutter Speed | 1/30 (1/25) to 1/50,000 s |
| Day & Night | ICR |
| Synchronization | Internal |
| Video Frame Rate | 2560 x 1944@20fps |
| HD Video Output | 1 Analog Output |
| Switch Button | TVI/AHD/CVI/CVBS |
| Angle Adjustment | Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360° |
| MENU | |
| AGC | Support |
| D/N Mode | Color/ BW/ SMART |
| White Balance | ATW/ MWB |
| DWDR | Support |
| BLC | Support |
| Function | DNR, Mirror, SMART IR |
| GENERAL | |
| Working Temperature /Humidity |
-40 °F ~ 140 °F (-40 °C ~ 60 °C) Humidity 90% or less (non-condensing) |
| Power Supply | DC 12V |
| Power Consumption | Max. 4.3W |
| Weather Proof Ratings | IP67 |
| IR Range | Up to 131ft (40m) |
| Dimensions | 4.3 ”×3.7” (110.0×93.2mm) |
| Weight | 0.77 lbs (350g) |
Products specifications
| Camera Features | Outdoor |
| Lens | 2.8mm |
| Resolution | 5MP |
| Technology | HD-TVI |
