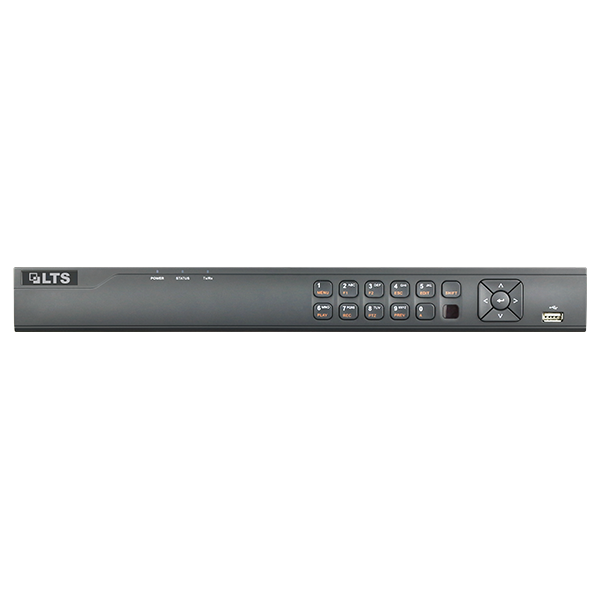

- H.265/H.265+ 8 Channel Video Recorder
- 4/1 RCA I/O
- 8 channels Support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
- 8 channels support up to 4K/8MP HD-TVI input
- Up to 2-ch 6 MP IP cameras input
- Support Live View, Storage, Playback up to 8 HD-TVI / Analog Cameras + 2 IP Cameras
- Up to 4K HDMI Video Output
- CVBS Output
- 2 SATA up to 16TB HDD
- 2 USB 2.0
| DVR LTD8508K-ST | |
| Video Compression | H.265+/H.265/H.264 Zip+/H.264 |
| Video Input | 8ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
| IP Input | 2-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras |
| HDTVI input | 8MP 4K, 5MP, 4MP, 3MP, 1080p30, 1080p25, 720p60 |
| AHD input | 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Support |
| Audio Compression | G.711u |
| Audio Input | 4-CH, RCA (2.0 Vp-p kΩ) |
| Two-Way Audio Input | 1-CH, RCA (2.0 Vp-p kΩ) |
| VIDEO/AUDIO OUTUPUT | |
| HDMI/VGA Output | 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz |
| Encoding resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIFs |
| CVBS output | 1-ch, BNC (1.0 Vp-p, 1 kΩ), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Frame Rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fp s (N) |
| Video Bit Rate | 32 Kbps-10 M bps |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 8ch |
| NETWORK | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
| HARD DISK | |
| SATA | 2 SATA |
| Capacity | Up to 8TB capacity for each disk |
| EXTERNAL INTERFACE | |
| Network interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| Serial interface | RS-4 85 (half-duplex) |
| USB Port | 2 × USB2.0 |
| Alarm In/Out | 4/1 |
| GENERAL | |
| Power supply | DC12V |
| Consumption | ≤ 20W |
| Working temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U |
| Dimensions (WxDxH) | 380 × 320 × 45 mm (15.0 × 12.6 × 1.8 inch) |
| Weight | ≤2Kg (4.4 lb) |
Products specifications
| Number of Channels | 8Ch |
| Resolution | 4K 8MP |
| Technology | HD-TVI, Hybrid |
