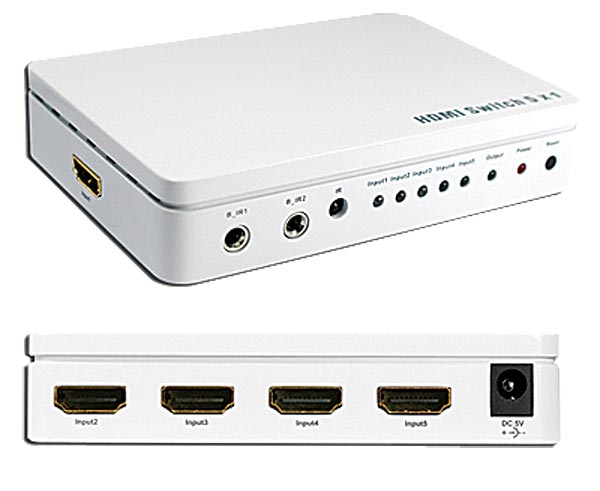

5 in 1 out (5 x 1) HDMI Switcher (OP-HKSW0501PH)

SKU: 141428

Accepted Payments

Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • HDMI 1.3 protocol compliant
  • 5 HDMI input and 1 HDMI display sink. Blue-Ray 24fs/ xv-YCC support
  • Support deep color 36bit and signal retiming
  • 25m AWG26 HDMI input & 20metre AWG26 HDMI output cable length
  • DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD audio format
  • Manual or Remote: Select one of 3 different HDMI signal input source, output to the sink
  • It can smartly choose the signal source with priority order or jump over those input sources
    which are not in work


HDMI version HDMI1.3
HDCP version HDCP1.2
Support HDMI resolution 1080P/1080i/720P/576P/576i/480P/480i
Support video color format xv-YCC/deep color 24bit/36bit
Support audio format DTS-HD/true-HD/LPCM7.1/Dolby-AC3/DTS/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Input cable support <20m AWG24 cable length
Output cable distance <20m AWG24 cable length
Max working current 3000mA
Power adapter Supply DC5v
Power adapter format Input AC100-240V, output DC5v
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 114.5x62.5x26(mm)
Weight 219g
