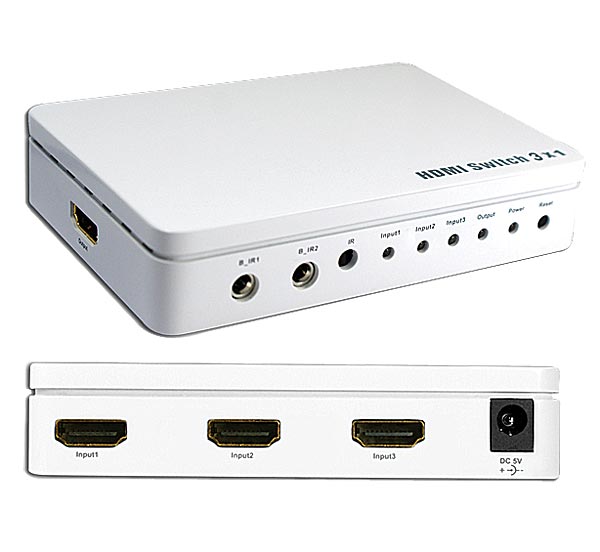

3 in 1 out (3 x 1) HDMI Switcher (OP-HKSW0301PH)

SKU: 141426
MPN: OP-HKSW0301PH
Be the first to review this product
$59.95
$39.95

Accepted Payments

Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)

KEY FEATURES

  • HDMI 1.3 protocol compliant
  • 3 HDMI input and 1 HDMI display sink. Blue-Ray 24fs/ xv-YCC support
  • Support deep color 36bit and signal retiming
  • 25m AWG26 HDMI input & 20metre AWG26 HDMI output cable length
  • DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD audio format
  • Manual or Remote: Select one of 3 different HDMI signal input source, output to the sink
  • It can smartly choose the signal source with priority order or jump over those input sources
    which are not in work

SPECIFICATIONS

  OP HKSW0301PH
HDMI version HDMI1.3
HDCP version HDCP1.2
Support HDMI resolution 1080P/1080i/720P/576P/576i/480P/480i
Support video color format xv-YCC/deep color 24bit/36bit
Support audio format DTS-HD/true-HD/LPCM7.1/Dolby-AC3/DTS/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Input cable support <20m HDMI AWG24 cable length
Output cable distance <20m HDMI AWG24 cable length
Max working current 200mA
Power adapter Supply DC5v
Power adapter format Input AC100-240V, output DC5v
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 110x75x23(mm)
Weight 219g
