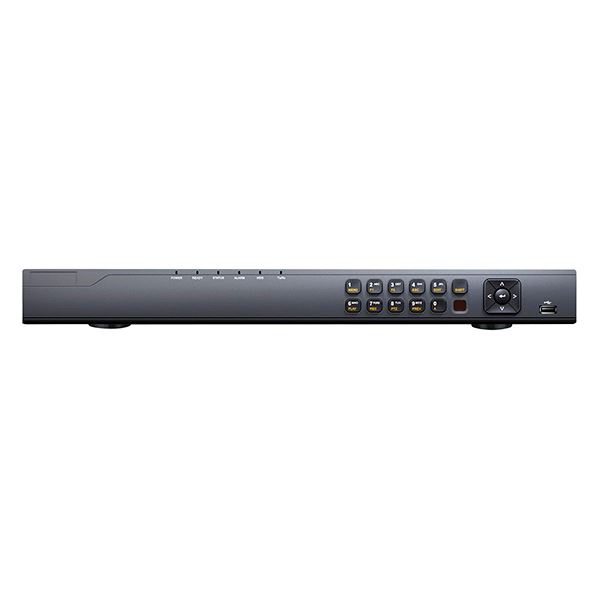

16Ch HD-TVI HD DVR 16Ch Analog + 2Ch IP (LTD8316T-FA) 16Ch HD-TVI HD DVR 16Ch Analog + 2Ch IP (LTD8316T-FA)

16Ch HD-TVI HD DVR 16Ch Analog + 2Ch IP (LTD8316T-FA)

SKU: 121752
MPN: LTD8316T-FA
1 review(s) | Add your review
5.0 1

storage calculator

$379.95
$224.95

Accepted Payments

LTD8316T-FA, 16Ch HD-TVI DVR, with Tribrid handling capability to mix HD-TVI analog 960h and IP into one DVR, Full HD 1080p Display and Record at H.264 compression, VGA and HDMI out, and iOS and Android support, easy plug and play auto-detect technology.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 16 Channel Digital Video Recorder
  • Analog & HD-TVI Video In: 16CH
  • IPC Input: 2CH [email protected]
  • Video Output: VGA/HDMI up to 1080P
  • Playback Channel: 16CH
  • Audio In/Out: 1CH/1CH, RCA
  • Alarm In/Out: 16/4
  • Network: 10/100/1000M
  • Storage: 2 SATA up to 16TB
  • USB: 2 USB 2.0
  • PTZ: 1 RS485
  • Support POS #: 4



LTD8316T-FA
Video / Audio input
Video compression H.264
HD-TVI video input 16-ch
Video input interface BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP input 2ch([email protected])
Audio compression G.711u
Audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
Encoding resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate 32 Kbps-6 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 16-ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection 128
Network protocols TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA 2 SATA interface
Capacity Up to 4TB capacity for each disk
External interface
Network interface 1; 10M / 100M /1000M
Serial interface 1; standard RS-485 serial interface, half-duplex
Alarm in/out 16/4
USB port 2 × USB2.0
General
Power supply 12V DC
Power Consumption ≤ 30 W
Working temperature -10 °C~+55°C(14°F ~ 131 °F)
Working humidity 10% ~ 90%
Chassis 19'' rack-mounted 1U
Dimension  445 × 290 × 45 mm (17.5" x 11.4" x 1.8")
Weight ≤ 2 kg (4.4 lb)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Just wow
we paid a lot more for 16Ch DVR in the past, but this system is just fabulous, very compact, super user friendly menu to use, and the mobile app is flawless and standard 3 years warranty.
From: Guest | Date: 1/11/2017 12:22 AM
Was this review helpful? Yes No (0/0)
Products specifications
Number of Channels 16Ch
Technology Hybrid
Technology HD-TVI
