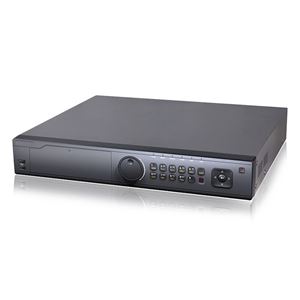

24Ch HD-TVI HD DVR 24Ch TVI/Analog + 8Ch IP (LTD8424T-FA)

SKU: 121690
Availability: 5 in stock
Call for price

Accepted Payments

The LTD8424T-FA is a 24Ch Tribrid standalone security DVR, supporting 3 different technologies simultaneously (HD-TVI, standard analog and IP cameras) making the LTD8424T-FA the perfect HD-TVI for implementation, with H.264 video compression and 4Ch of audio inputs, This DVR records 1080p and 720p, HD-TVI and standard cameras connect using BNC connectors over Coaxial cable in addition to the IP cameras over the network. clear and smooth video on mobile remote view and playback for both iOS and Android mobile devices.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)

Our new addition to the platinum series HD-TVI DVRs, state of the art Linux based 24Ch HD-TVI tribrid DVR, mix and match HD-TVI, Analog and IP for a cost effective system that would give you the coverage you need at the resolution you want, LTD8424T-FA comes with 3 yeas warranty.

  • H.264 & Dual-stream video compression
  • Support HD-TVI/analog/IP camera triple hybrid
  • Full channel 1080P@15fps, 720P@30fps recording
  • HDMI and VGA output at up to 1920×1080P resolution
  • 4 SATA HDD interface, up to 6TB for each disk
  • Support NAS, IP SAN Network Storage, 8 x POS
  • Long transmission distance over coax cable
  • Support up to 24-ch synchronous playback


Video / Audio input
Video compression H.264
Analog and HD-TVI video input 24ch BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
IP input up to 8ch
Audio compression G.711u
Audio input 4-ch, RCA(2.0 Vp-p, 1 kΩ)
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI output / VGA output

Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA

Frame rate

Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate

Video bit rate 32 Kbps-4 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 24ch
Playback resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Remote connections 128
Hard disk
SATA 4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity Up to 6TB capacity for each disk
External interface
Network interface 1:10M / 100M/1000M self-adaptive Ethernet interface
Serial interface RS-232, RS-485, Keyboard
USB port 3 × USB2.0
Alarm in/out 16/4
Power supply 100 ~ 240VAC, 47 ~ 63HZ
Power Consumption ≤ 65W
Working temperature -10 °C ~ +55 °C(14°F - 131°F)
Working humidity 10% ~ 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimension  445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch)
Weight ≤5Kg (11.0lb)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Amazing HD picture.
This TVI DVR works as described, it took a little time to learn the menu, but the picture quality is simply amazing and the picture on our iPhones is very smooth.
From: Guest | Date: 8/31/2015 11:28 PM
Was this review helpful? Yes No (0/0)
Products specifications
Technology HD-TVI
Number of Channels 24Ch
Technology Hybrid
