| Product Highlights | |
| Resolution | 2MP/1080p |
| Camera Features | WDR, Outdoor |
| Technology | HD-SDI |
KEY FEATURES SPECIFICATIONSCamera Image Sensor 6.49mm (1/2.8 Type) CMOS Sensor Resolution 3M Pixels (2096 × 1561) ISP XDI-II Zoom Optical ×30 & Digital ×12 Focal Length F1.6~5.0, f=4.3~129.0 mm Gain Control Auto / Low / Middle / High Shutter Control Auto / Manual (1/30 ~ 1/10,000 SEC.) White Balance Auto / ATW / One Push / Manual Day & Night Auto / Day / Night (ICR) Minimum Illuminance 0.8 Lux (Color, AGC 30, Sens-up Off) / 0.1 Lux (B/W, AGC 30, Sens-up Off) BLC WDR / BLC / Off Sens-up Off / Auto (x2, x3, x4, …x64) NR (Noise Reduction) 3D-DNR (Off / Low / Middle / High) Privacy Zone 8 Masks with Spherical Coordinate Image Stabilization On / Off Pan/Tilt Range Pan : 360°(Endless) / Tilt : 90° Pan/Tilt Speed Preset : 500° / SEC. Manual : 0.05° ~ 360° / SEC. (Zoom Proportional) Swing : 10°~180° / SEC. Preset 255 Presets (46 Presets reserved for Hot Keys) Pattern 4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern] Swing 10 Swings Group 8 Groups (MAX. 40 Actions with The Combination of Preset, Pattern and Swing) Scheduler Function 8 Scheduler Functions with RTC(Real Time Clock) Other Functions Auto Flip, Auto Parking, Power-up Action & etc. Video Output 2 x BNC (HD-SDI and CVBS) HD-SDI Standard HDcctv V1.0 / 1.485Gb/s / SMPTE 292M Resolution : 1080p30, 1080i60, 720p60/30 CVBS 1.0 Vp-p RTC(Real Time Clock) YES (RTC Battery Backup Time : Approximate 2 Weeks) OSD YES (English) Serial Port Port RS-485 for PTZ Control Protocol Pelco-D, Pelco-P Selectable Sensor / Alarm Sensor Input 3 Inputs, Photo-Coupler Type, DC 5V~12V Alarm Output 1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A Physical Mount Bracket Wall Mount Bracket or Ceiling Mount Bracket Dimension Dome : Ø150mm / Ø5.9" Wall Mount : 200(Ø) × 408(H) [mm] / 7.87"(Ø) × 16.1"(H) Ceiling Mount : 300 × 309(H) [mm] / 11.8" × 12.2"(H) Weight Approximate 3.6 Kg / 7.9 Lbs with Wall Mount Bracket Approximate 3.4 Kg / 7.5 Lbs with Ceiling Mount Bracket Material Dome : Poly Carbonate / Housing : Aluminum Rated Power Dual Power Support : DC 12V / 1.8A or AC 24V / 2.0A Waterproof IP 67 Fan Always ON Heater Operation Start from Internal Temperature 10 °C (50°F) Operating Temp. -30°C ~ 50°C (-34°F ~ 122°F)

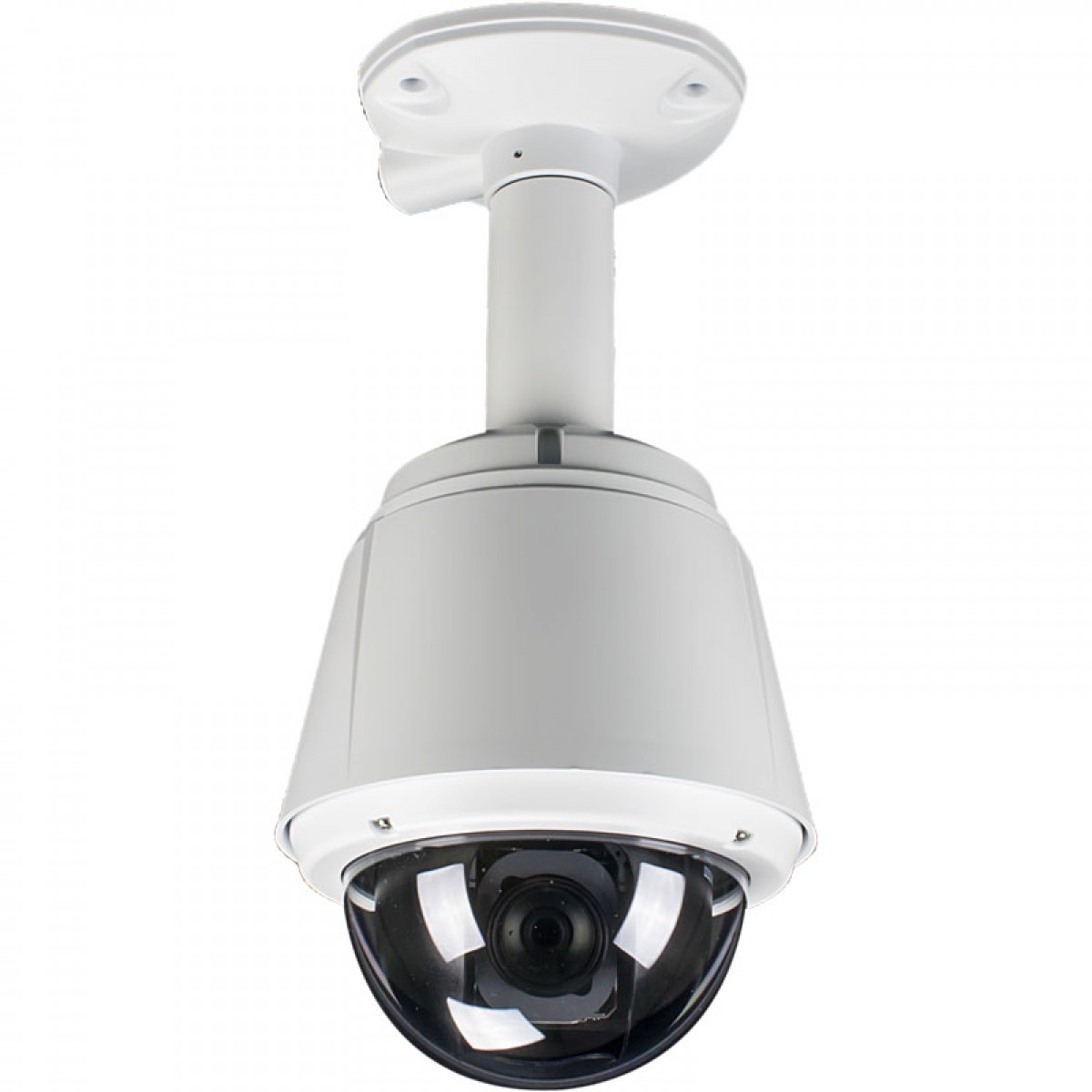

HD-SDI 1080p ×20 HD IP Outdoor Speed Dome Camera with ICR / WDR (HS-PT320)
