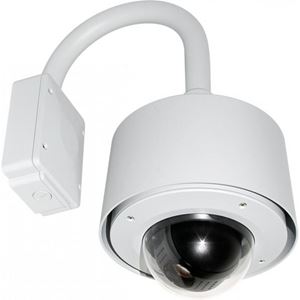

HD-SDI 1080p ×20 HD IP Outdoor Speed Dome Camera with ICR / WDR (HS-PT320)

SKU: 141325

Accepted Payments

x200 Zoom Control (Optical ×20, Digital ×10) Day & Night (ICR) / WDR / DNR 255 Preset Positions Vandal-Proof
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • x200 Zoom Control(Optical x20, Digital x10)
  • Day & Night (ICR)
  • WDR(Wide Dynamic Range)
  • DNR(Digital Noise Reduction)
  • 255 Preset Positions with Alphanumeric Labels
  • 4 Pattern, 8 Scan and 8 Group Functions
  • 8 Privacy Zones (Spherical Coordinates)
  • Power-up Action
  • On-Screen Display of Real time and Temperature
  • Built-in 8 Sensor Inputs and 4 Relay Output
  • Vandal-Proof (Dome Cover : PC), (Housing & Accessories : AL Die-cast)
  • Adaptive Pan Tilt speed to Zoom ratio
  • Lightning Speed (MAX. 360°/sec)
  • Smooth Manual Speed (MIN. 0.05°/sec)
  • Endless 360° Pan Rotation


HS PT320
CAMERA Image Device 1/2.8" 3Megapixel CMOS
Effective Pixels Approx. 2 Mega pixels
S/N Ratio 50dB(AGC off)
Zoom x20 optical zoom & x10 digital zoom
Focal Length F 1.6 ~ 3.5 f=4.7 ~ 94mm
Angle of View H:55.4° (W) ~ 2.9°(T)
MIN. Illuminance Color: 1.7 Lux @ F1.6 50 IRE, High sensitivity Mode : 0.5 Lux @ F1.6 50 IRE
B/W:0.3Lux @ F1.6 50 IRE, High sensitivity Mode : 0.095 Lux @ F1.6 50 IRE
Day & Night Auto / Day / Night (ICR)
Focus Auto / Manual
Shutter Speed 1~1/10,000s(22 steps)
AGC Auto/Manual ( -3dB ~ 28dB,2dB steps)
White Balance Auto WB/Indoor/Outdoor/One Push WB/Manual WB
PAN/TILT Range Pan : 360°(Endless)
Tilt : 90°
Pan/Tilt Speed Preset : 360°/ sec
Manual : 0.05°~ 360°/ sec (Zoom Proportional)
Preset 255 presets with Labels/Independent Camera Setup
Pattern 4 Patterns(Approx. 5 Minutes for Each Pattern)
Scan 8 Scans
Group 8 Groups(Max. 20 Enters for Each Group)
GENERAL Video Out HD-SDI, SMPTE-292M(1080p/29.97Hz, 1080p/25Hz, 1080i/59.94Hz,
1080i/50Hz, 720p/59.94Hz, 720p/50Hz, 720p/29.97Hz, 720p/25Hz)
Communication RS-485
RS-485 Protocol Auto(Pelco-D, Pelco-P, Samsung-E can be supported automatically)
Sensor In/Out Built in 8 Input / 4 Output
Power AC 24V
Approvals FCC, CE, RoHS, IP66
Outdoor Housing IP 66 / Vandal Proof Structure
(Housing & Accessories: AL Die-cast), (Dome cover:PC)
Material Body: Aluminum Die-casing
Clear Bubble: Polycarbonate
Dimension Net (ØH): Ø259 x 265.7(H) mm
Weight operation Temp. Net: 6 Kg, Package: 10.9 Kg
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Resolution 2MP/1080p
Camera Features WDR
Technology HD-SDI
Camera Features Outdoor
