| Product Highlights | |
| Resolution | 2MP/1080p |
| Technology | HD-SDI |
| Camera Features | Outdoor |
KEY FEATURES

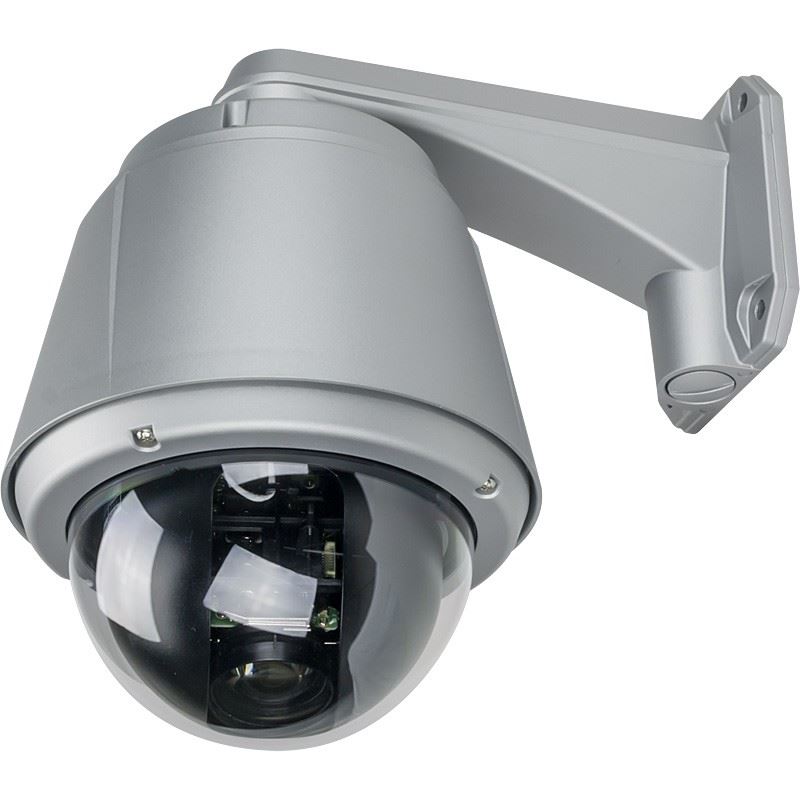

- 2.0 Mega-Pixel Resolution PTZ
- ×160 Zoom Control (Optical ×20 / Digital ×8)
- True Day & Night with ICR (IR Cut Filter)
- NR (Noise Reduction) / Image Stabilization Function
- Minimum Illuminance (1.5 Lux at Color / 0.1 Lux at B/W)
- Super Speed (500°/SEC.) with 360° Endless Pan Rotation
- The Shortest Path with Vector Drive Technology
- Micro Control (0.05°/SEC.) with Micro Stepping Control Technology
- Super Video Quality with RAW Video Data
- HD-SDI Standard Support (HDcctv™ V1.0 / 1.485Gb/s / SMPTE 292M)
- Simultaneous HD-SDI & Composite Output
- OSD(On-Screen Display) Menu with Password Function
- 8 Privacy Masks with Spherical Coordinates
- 8 Sets of Scheduler Function with RTC(Real Time Clock)
- 255 Presets (46 Presets reserved for Hot Keys) / 10 Swings / 4 Patterns / 8 Groups
- Frame Freeze Function
- Dual Power Input (AC 24V or DC 12V)
- Vandalproof / Weatherproof with Built-in Fan & Heater
- Waterproof (IP 67)
SPECIFICATIONS
XPT 1220 | ||||
| Camera | Image Sensor | 1/3" PS CMOS Sensor | ||
| Pixels | 2,000K Pixels | |||
| Zoom | Optical ×20 & Digital ×8 | |||
| Video Signal-to-Noise | 50 dB | |||
| Focal Length | F1.6~2.9, f=4.45~89 mm | |||
| Angle of View | H : 55.56°(Wide) ~ 3.10°(Tele) / V : 43.32°(Wide) ~ 2.34°(Tele) | |||
| Min. Working Distance | 1,000 mm | |||
| Zoom Speed | 3.3 SEC. (Wide to Tele) | |||
| Minimum Illuminance | 1.5 Lux (Color, F1.6, 50 IRE) / 0. 1Lux (B/W, F1.6,50 IRE) | |||
| Day & Night | Auto / Day / Night (ICR) | |||
| Focus | Auto / Manual / Semi-Auto | |||
| White Balance | Auto / Manual (Red, Blue Gain Adjustable) | |||
| Iris | Auto / Manual | |||
| Gain | OFF / Low / Middle / High / Manual | |||
| Shutter Speed | Auto / Manual(x60~1/33,000) / A.FLK | |||
| BLC | OFF / BLC / HLC | |||
| SSNR | Low / Middle / High / OFF | |||
| Sens-Up | OFF / Auto (x2 ~ x60) | |||
| Brightness | 1 ~ 100 | |||
| Sharpness | 1 ~ 31 | |||
| Privacy Zone | 8 Masks with Spherical Coordinate | |||
| Image Stabilization | ON / OFF | |||
| Pan/Tilt | Range | Pan : 360°(Endless) / Tilt : 90° | ||
| Pan/Tilt Speed | Preset : 500° / SEC. | |||
| Manual : 0.05° ~ 360° / SEC. (Zoom Proportional) | ||||
| Swing : 10°~180° / SEC. | ||||
| Preset | 255 Presets (46 Presets reserved for Hot Keys) | |||
| Pattern | 4 Patterns [768 Commands(Approximate 5 Minutes) / 1 Pattern] | |||
| Swing | 10 Swings | |||
| Group | 8 Groups (MAX. 40 Actions with The Combination of Preset, Pattern and Swing) | |||
| Scheduler Function | 8 Scheduler Functions with RTC(Real Time Clock) | |||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc. | |||
| Video | Output | 2 x BNC (HD-SDI and CVBS) | ||
| HD-SDI Standard | HDcctv V1.0 / 1.485Gb/s / SMPTE 292M | |||
| Resolution : 1080p30, 1080i60, 720p60/30 | ||||
| CVBS | 1.0 Vp-p | |||
| RTC(Real Time Clock) | YES (RTC Battery Backup Time : Approximate 2 Weeks) | |||
| OSD | YES (English) | |||
| Serial Port | Port | RS-485 for PTZ Control | ||
| Protocol | Pelco-D, Pelco-P Selectable | |||
| Sensor / Alarm | Sensor Input | 3 Inputs, Photo-Coupler Type, DC 5V~12V | ||
| Alarm Output | 1 Output, Relay Output, MAX. Load DC 24V / 1.0A or AC 125V / 0.5A | |||
| Physical | Mount Bracket | Wall Mount Bracket or Ceiling Mount Bracket | ||
| Dimension | Dome : Ø150mm / Ø5.9" | |||
| Wall Mount : 200(Ø) × 408(H) [mm] / 7.87"(Ø) × 16.1"(H) | ||||
| Ceiling Mount : 300 × 309(H) [mm] / 11.8" × 12.2"(H) | ||||
| Weight | Approximate 3.6 Kg / 7.9 Lbs with Wall Mount Bracket | |||
| Approximate 3.4 Kg / 7.5 Lbs with Ceiling Mount Bracket | ||||
| Material | Dome : Poly Carbonate / Housing : Aluminum | |||
| Rated Power | Dual Power Support : DC 12V / 1.8A or AC 24V / 2.0A | |||
| Waterproof | IP 67 | |||
| Fan | Always ON | |||
| Heater | Operation Start from Internal Temperature 10 °C (50°F) | |||
| Operating Temp. | -30°C ~ 50°C (-34°F ~ 122°F) | |||
