Manufacturer: UnixCCTV

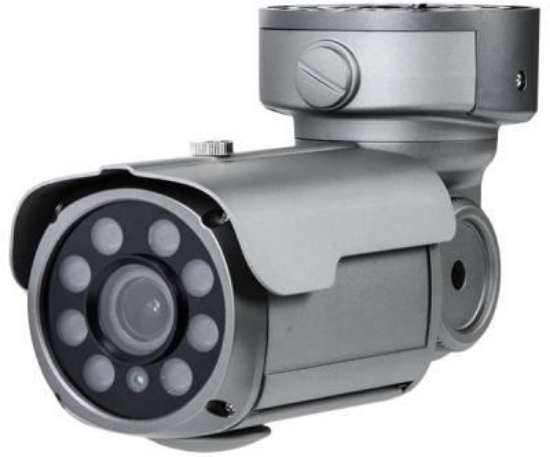

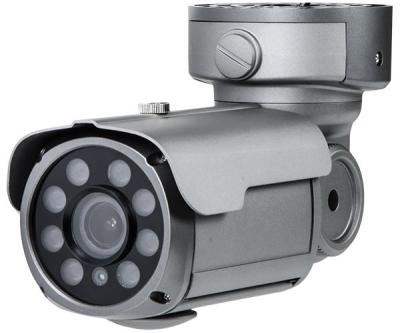

HD-SDI 2MP 1080p Bullet Camera COB IR (XIR-2342FV)

1 review(s)
SKU: 141716
MPN: XIR-2342FV
$194.95
$229.94

All New XIR-2342FV HD-SDI Bullet Camera with 2MP 1080p full HD resolution and revolutionary COB IR LEDs for perfect clearance night vision picture, and adjustable 2.8 to 12mm lens, with IP68 rated casing for complete weatherproof protection and OSD (On Screen Display) menu for advanced picture adjustments.
Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Resolution2MP/1080p
TechnologyHD-SDI
Lens2.8-12mm
  • 1/2.9” Sony CMOS
  • 2.8~12mm Auto-Iris Vari-Focal Lens
  • 0 Lux at IR On (8 pcs of COB IR LED)
  • Upgraded Waterproof Housing (IP68 Rating)
  • Smart IR / DNR (Digital Noise Reduction) / True Day & Night (ICR)
  • RS-485 Option
  • Easy Installation
  • DC 12V





SPECIFICATIONS

XIR 2342FV
Resolution1080p, 720p, 720p CROP
Sensor1/2.9 inch Sony CMOS
Total Pixels2000(H) × 1241(V)=2,482,000
Effective Pixels1944(H) × 1092(V)=2,122,648
Scanning SystemProgressive
S/N (Y Signal)More then 52 dB (AGC Off)
Video OutputSDI / CVBS: 1.0Vp-p (75ohm)
Min. IlluminationIR Product: 0 Lux at IR On
General Product: 1 Lux at F1.2/0.1 Lux (B/W)
White BalanceAuto / Auto Ext / Preset / Manual
ShutterAuto / Manual (1/30sec ~ 1/60,000sec)
BrightnessAdjustable (0~20 Step)
Sens UpOFF / X2 / X3 / X4 / X5 / X6 / X7 / X8
DNROFF / Low / Middle / High
BacklightOFF / WDR / BLC / HLM
ACEOFF / Low / Middle / High
Day & NightAuto (Day Night Time Change), Color, B/W, Extern, MDIR (Search Option)
PrivacyOFF / ON (16 Zone)
MotionOFF / SET
Digital Zoom0~127
FlipOFF / ON
FreezeOFF / ON
LanguageEnglish, Chinese, Chinese(S), Japanese, Korean
SharpnessAdjustable (0~10 Step)
DefogOFF / SET
Communication PortRS-485 (Pelco-D)
Smart IRAdjustable (0~20 Step)
Operating Temp / Humidity-10°C ~ +50°C(14°F ~ 122°F) / 30%~80% RH
Storage Temp / Humidity-20°C ~ +60°C(-4°F ~ 140°F) / 20%~90% RH
PowerDC 12V
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (Coaxial Cable 300M)
