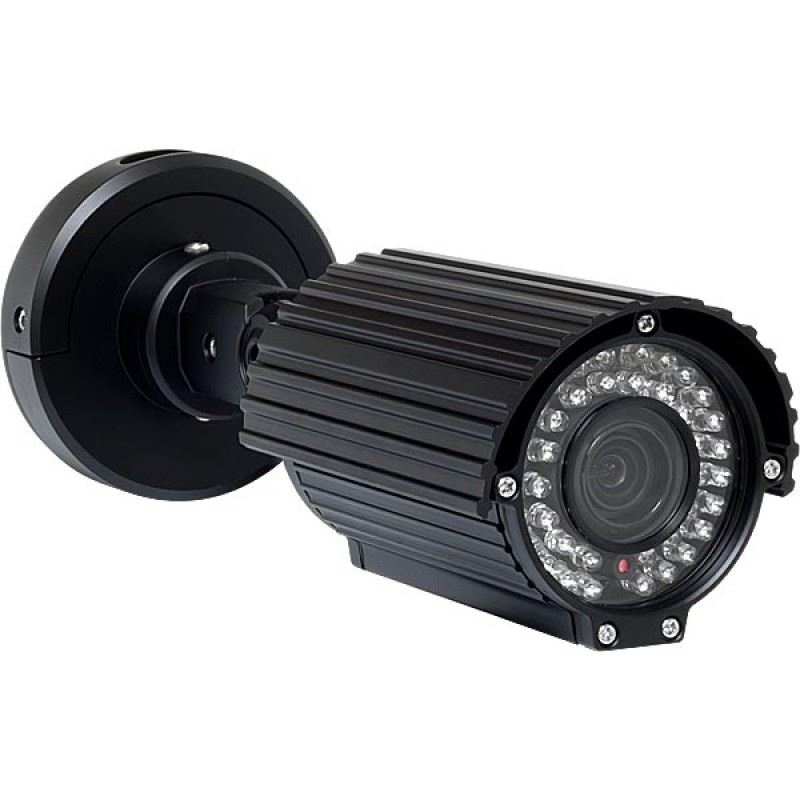

HD-SDI 1080p Outdoor Infrared Bullet Camera w/ ICR 2.8-12mm (XIR-2142FV)

SKU: 141289

Accepted Payments

HD-SDI FULL HD 1080p Bullet Security Camera 2.8~12mm Mega-Pixel AVF Lens (external control) 40 IR LED / Range up to 100ft • Smart IR • DC 12V
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • 1/3" SONY CMOS
  • HD-SDI(1080p, 720p) / High resolution (1000 TV line over)
  • HD-SDI(High Definition Serial Digital Interface) / 0 lux at IR on (IR LED 40pcs)
  • Upgraded waterproof housing(IP67 rating) / MDIR (Motion Detection IR)
  • DNR (Digital Noise Reduction) / Smart IR
  • True Day & Night(ICR) / Easy Installation : 3Axis Concealed Bracket
  • 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)


XIR 2142FV
Resolution HD-SDI(1080p, 720p) / 1000 TV line over
Sensor 1/3" Sony CMOS
Total Pixels 2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels 1944(H) × 1092(V) = 2.1M Pixel
Scanning System Progressive
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI)
Min.Illumination 0 lux at IR on
White Balance Auto / Auto EXT / Pushing / Manual
Electronic Shutter Speed Auto / Manual (1/30sec ~ 1/30,000sec)
Brightness Adjustable (0 ~ 20 Step)
SENS UP Off / ×2 / ×3 / ×4
DNR Off / Low / Middle / Hi
WDR / BLC Off / Single scan WDR / BLC
HLM Off / Set
ACE Off / On
Day & Night Auto (Day <--> Night time change) , Color , B/W
Privacy Off / On (31 Zone)
Motion Detection Off / On
D.ZOOM 0 ~ ×127
FLIP Off / On
Language English
Sharpness Adjustable (0 ~ 10 Step)
Image Conversion Off / On
Operating Temperature / Humidity 14°F~122°F (-10°C~+50°C) / 30%~80% RH
Storage Temperature / Humidity -4°F~+140°F (-20°C~+60°C) / 20%~90% RH
Power DC 12V Only
Distance 300 ~ 450ft (100 ~ 150m)
Transmission range Max transmission range is depends on the cable manufacturer and the installation environment.

Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Camera Features WDR
Camera Features Outdoor
Resolution 2MP/1080p
Technology HD-SDI
Lens 2.8-12mm
