- 720P HD-TVI Video Output
- 1.3MP CMOS Image Sensor
- 23X optical zoom, 16X digital zoom
- OSD Menu via UTC technology
- Privacy Masking, 3D DNR, D-WDR, EIS
- 3D intelligent positioning
- True Day&Night
- 4-inch bubble

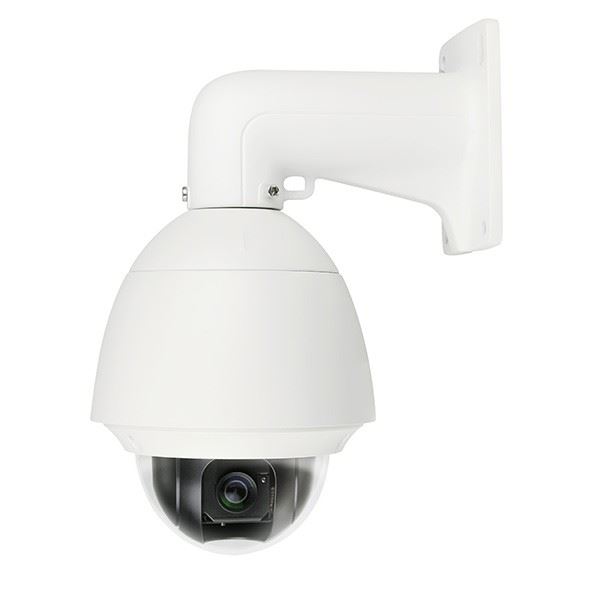

PTZH213X23 HD-TVI PTZ Camera | |
Image Sensor | 1 / 3"Sensor |
Effective Pixel | 1400K |
Max. Image Resolution | 1280×720 |
Resolution | 60Hz: 60fps(1280×720), 30fps(1280×720) 50Hz: 50fps(1280×720), 25fps(1280×720) |
Min. Illumination | Color: 0.05Lux@( F1.6,AGC ON) B/W: 0.01Lux@( F1.6,AGC ON) |
White Balance | Auto / Manual / ATW / Indoor / Outdoor |
AGC | Auto / Manual |
S / N Ratio | ≥ 50dB |
3D DNR | Support |
Digital WDR | Support |
EIS | Support |
Backlight compensation | Support |
Shutter Time | 1-1/10,000s |
Day & Night | IR Cut Filter |
Digital Zoom | 16X |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen |
Focus Mode | Auto / Semiautomatic / Manual |
Lens | |
Focal Length | 4-92mm, 23X |
Zoom Speed | Approx.4.0s(Optical Wide-Tele) |
Angle of View | 49-2.2 degree(Wide-Tele) |
Min. Working Distance | 10-1000mm (Wide-Tele) |
Aperture Range | F1.6-F3.7 |
Pan and Tilt | |
Pan / Tilt Range | Pan: 360° endless; Tilt: -2° ~ 90° (Auto Flip ) |
Pan / Tilt Speed | Pan Manual Speed: 0.1° ~160°/s, Pan Preset Speed: 160°/s Tilt Manual Speed: 0.1° ~120°/s, Tilt Preset Speed: 120°/s |
Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset | 256 |
Patrol | 8 patrols, up to 32 presets per patrol |
Pattern | 4 patterns, with the total recording time not less than 10 minutes |
Power-off Memory | Support |
Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
PTZ Position Display | On / Off |
Preset Freezing | Support |
Scheduled Task | Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan |
RS-485 communication diagnosis | Support |
Input/ Output | |
Monitor Output | 1 HD TVI output , (1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC) |
RS-485 Interface | Half-duplex mode, Pelco-P, Pelco-D protocol |
UTC function | Self-adaptive PELCO_C |
General | |
Menu Language | English, Chinese |
Power | 24 VAC , Max.18 W(heater: 6W) |
Working Temperature | -22°F-149°F(-30 °C-65°C) 90% or less |
Protection Level | IP66 standard ; TVS 4,000V lightning protection, surge protection and voltage transient protection |
Dimension | Φ7.06"×9.43"(Φ179.4×239.5mm) |
Weight (approx.) | 4.41Ibs (2Kg) |
Products specifications
Camera Features | WDR, Outdoor |
Technology | HD-TVI |
Resolution | 1MP/720p |
