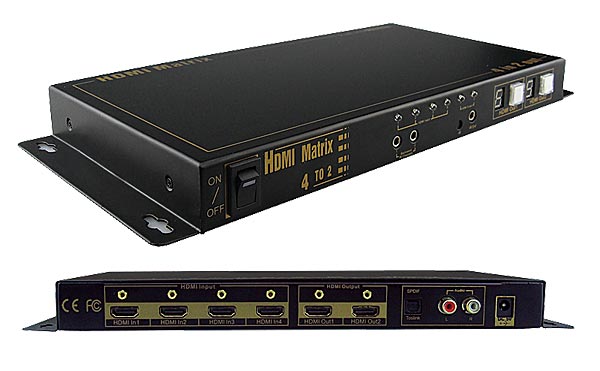

Professional 4 in 2 out (4 x 2) True HDMI Matrix Slim Size (OP-HKTM0402MH)

SKU: 141430

Accepted Payments

Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • 4 HDMI input and 2  HDMI display sink . Any input to any output
  • HDCP 1.2 compliant
  • HDMI1.4a 1080P Full-HD output, deep color 36bit
  • Super Slim type,easy to portable
  • HDMI digital audio format: DTS-HD/Dolby-true-HD/LPCM7.1/DSD
  • Support Xv-YCC and Blue-Ray player for 24fs film format
  • Manual or remote select source input signal to different sink
  • It can smartly jump over those input sources which are not in work


HDMI version HDMI1.4a with 3D
HDCP version HDCP1.2
Support HDMI resolution 1080P/1080i/720P/576P/576i/480P/480i
Support video color bit 24bit/deep color 36bit
Support audio format DTS-HD/Dolby-true-HD/LPCM7.1/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Input cable distance <=20m 24AWG Cable
Output cable distance <=20m 24AWG Cable
Max working current 3000mA
Power adapter Supply DC: 5V, 3A
Power adapter format Input: AC (50HZ.60HZ) 100V-240V; Output: DC5V
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 317x256x28(mm)
Weight 1968g
