Manufacturer: UnixCCTV

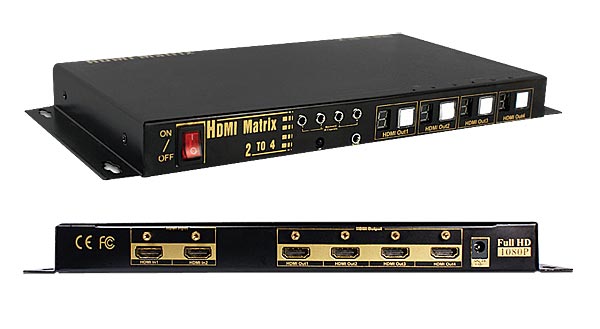

Professional 2 in 4 out (2 x 4) True HDMI Matrix Slim Size (OP-HKTM0204MH)

SKU: 141429
MPN: OP-HKTM0204MH
$134.95
$169.95
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support

KEY FEATURES

  • 2 HDMI input and 4 HDMI display sink . Any input to any output
  • Super IR control system, IR transport channel can be forward or backward ,an IR adapter is needed.
  • HDCP 1.2 compliant
  • 3D support ,1080P Full-HD output, deep color 36bit
  • Super Slim type,easy to portable
  • HDMI digital audio format: DTS-HD/Dolby-true-HD/LPCM7.1/DSD
  • Support Xv-YCC and Blue-Ray player for 24fs film format
  • Manual or remote or with RS232 controlled by computer select source input signal to different sink
  • It can smartly jump over those input sources which are not in work

SPECIFICATIONS

 OP HKTM0204MH
HDMI versionHDMI1.4a with 3D
HDCP versionHDCP1.2
Support HDMI resolution1080P/1080i/720P/576P/576i/480P/480i
Support video color bit24bit/deep color 36bit
Support audio formatDTS-HD/Dolby-true-HD/LPCM7.1/DSD
Date transfer speed6.75Gbps
Input Video signal5.0Volts P-P
Input cable distance<=20m 24AWG Cable
Output cable distance<=20m 24AWG Cable
Max working current3000mA
Power adapter SupplyDC: 5V, 3A
Power adapter formatInput: AC (50HZ.60HZ) 100V-240V; Output: DC5V
Operating Temperature range(-15 to +55 Degree)
Operating Humidity range5 to 90%RH (No Condensation)
Dimension (Lx W x H)317x256x28(mm)
Weight1968g
