KEY FEATURES

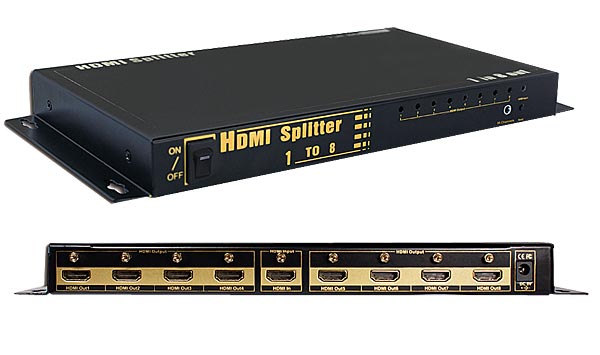

- 1 input HDMI signal can split to 8 HDMI signal sink devices simultaneously
- HDMI 1.4a protocol compliant
- HDCP 1.2 protocol compliant
- Support deep color 36bit
- Super Slim Type
- DTS-HD/True-HD/LPCM7.1/AC3/DTS/DSD audio format
- Full-HD 1080P/1600X1200UXGA
- Capable for up to 2 times cascade without any transmission lost
SPECIFICATIONS
| OP HKSP0108MH | |
| HDMI version | HDMI1.4a with 3D |
| HDCP version | HDCP1.2 |
| HDMI resolution | 1080P24fs/ 1080P/1080i/720P/576P/576i/480P/480i |
| Full-HD chain | 1080p cascade above 4 layers |
| Support video color format | 24bit/deep color 36bit |
| Support audio format | DTS-HD/Dolby-true-HD/LPCM7.1/DSD |
| Date transfer speed | 6.75Gbps |
| Input Video signal | 5.0Volts P-P |
| Input cable distance | <20m HDMI AWG24 |
| Output cable distance | <20m AWG24 HDMI 1.3 standard cable |
| Max working current | 1200mA |
| Power adapter Supply | DC5V, 2A |
| Power adapter format | Input AC(50Hz, 60Hz)100-240V, output DC12V |
| Operating Temperature range | (-15 to +55 Degree) |
| Operating Humidity range | 5 to 90%RH (No Condensation) |
| Dimension (Lx W x H) | 317x156x28(mm) |
| Weight | 856g |
