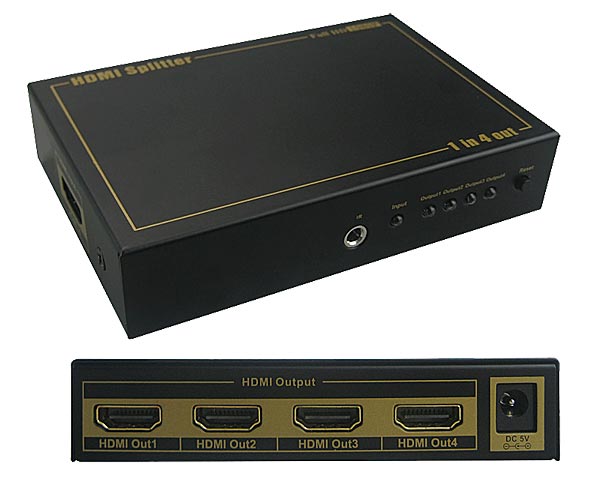

1 in 4 out HDMI Splitter (OP-HKSP0104SH)

SKU: 141424

Accepted Payments

Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • Support 1 input HDMI 1.3 signal can split to 4 HDMI signal sink device
  • HDCP 1.2 protocol compliant
  • Support Blue-Ray 24/50/60fs
  • Support digital audio split in HDMI, such as LPCM7.1/Dolby-AC3/DTS/DSD
  • Full-HD 1080p cascade above 4 layers
  • When source device and the sink display devices work in HDCP status, the color of LED relative to the sink
    will be blue.  If Non-HDCP, the color of LED relative to the sink will be red.
  • DC5V power supply


HDMI version HDMI1.3
HDCP version HDCP1.2
HDMI resolution 1080P24fs/ 1080P/1080i/720P/576P/576i/480P/480i
Full-HD chain 1080p cascade above 4 layers
Support video color format deep color 24bit/36bit
Support audio format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Output cable distance <=20m AWG24 HDMI cable
Max working current 1000mA
Power adapter Supply DC:5V, 2A
Power adapter format Input AC(50Hz, 60Hz)100-240V, output DC5V
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 114.5X62.5X26 (mm)
Weight 219g
