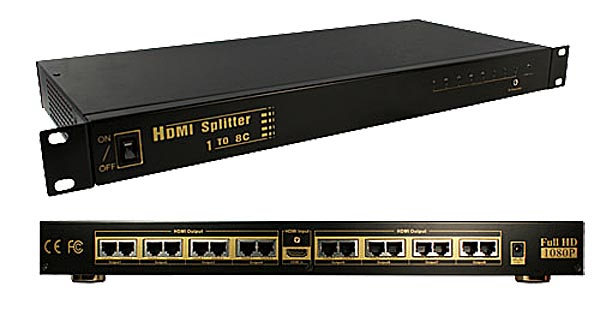

1 in 8 out HDMI Splitter over UTP (CAT5e/6) (OP-HKSP0108BC)

SKU: 141422

Accepted Payments

HDMI Splitter 1 to 8 channels, full HD 1080p signal over Cat5e and Cat6 supporting Support deep color 36bit, and DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD audio format.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • 1 input HDMI signal can split to 8 output with Cat5e/6 signal sink devices simultaneously
  • HDMI 1.4a compliant
  • HDCP 1.2 compliant
  • Support deep color 36bit
  • DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD audio format
  • Full-HD 1080P/1600X1200UXGA
  • Capable for up to 2 times cascade without any transmission lost


HDMI version HDMI1.4a with 3D
HDCP version HDCP1.2
HDMI resolution 1080P24fs/ 1080P/1080i/720P/576P/576i/480P/480i
Full-HD chain 1080p cascade above 4 layers
Support video color format deep color 24bit/deep color 36bit
Support audio format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Input cable distance <20m HDMI AWG24
Output cable distance <=20m AWG24 HDMI1.3 standard cable
Max working current 1200mA
Power adapter Supply DC:5V, 2A
Power adapter format Input AC(50Hz, 60Hz)100-240V, Output DC12V
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 500X200X28 (mm)
Weight 856g
