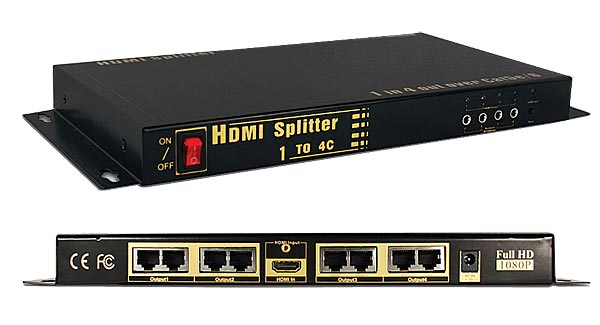

1 in 4 out HDMI Splitter over UTP (CAT5e/6) (OP-HKSP0104MC)

SKU: 141421

Accepted Payments

Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • 1 HDMI1.2 Full-HD1080p signal split to 4X2CAT6-RX HDMI device
  • HDCP 1.2 compliant
  • Support HDMI 1.2 signal via 4X2CAT6 for 40m1080p transmit. The receiver device is 4 sets of 2CAT6-RX HDMI devices
  • Support Blu-Ray 1080p 24/50/60fs
  • Full-HD 1080P/1600X1200UXGA
  • Support digital audio format, such as LPCM/Dolby-AC3/DTS7.1/DSD
  • Need DC9V power supply



HDMI version HDMI1.2
HDCP version HDCP1.2
HDMI resolution 1080P24fs/ 1080P/1080i/720P/576P/576i/480P/480i
Support video color format deep color 24bit/deep color 36bit
Support audio format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Date transfer speed 6.75Gbps
Input Video signal 5.0Volts P-P
Input cable distance <20m HDMI AWG24
Output cable distance <=40m CAT6
Max working current 1500mA
Power adapter Supply DC:9V, 2A
Power adapter format Input AC(50Hz, 60Hz)100-240V, Output DC5V
Operating Temperature range (-15 to +55 Degree)
Operating Humidity range 5 to 90%RH (No Condensation)
Dimension (Lx W x H) 317x156x28(mm)
Weight 860g
