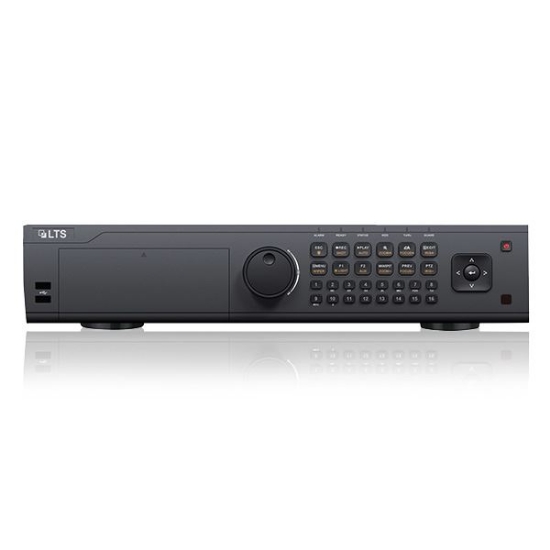

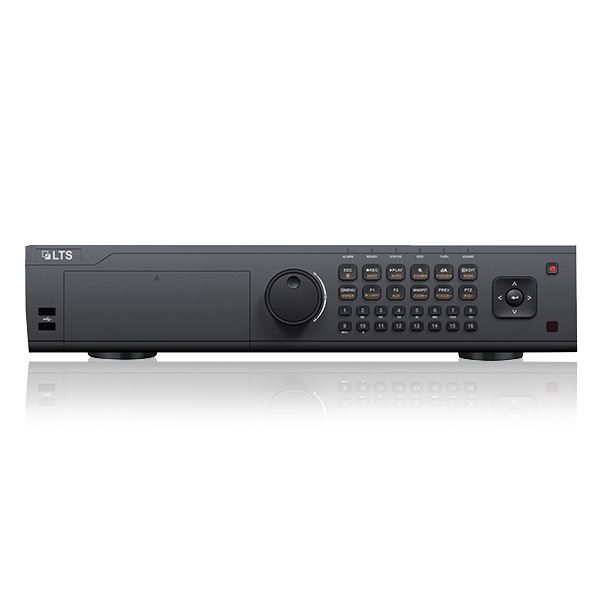

The LTD9224T-FA is a 24Ch Hybrid standalone Enterprise level security DVR, supporting 3 different technologies simultaneously (HD-TVI, standard analog and IP cameras) making the LTD9224T-FA the perfect HD-TVI for implementation, with H.264 video compression and 4Ch of audio inputs, This DVR records 1080p and 720p, HD-TVI and standard cameras connect using BNC connectors over Coaxial cable in addition to the IP cameras over the network. clear and smooth video on mobile remote view and playback for both iOS and Android mobile devices.
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Full channel 1080p @ 30fps Realtime, 720P@30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- 8 SATA HDD interface, up to 6TB for each disk
- Support NAS, IP SAN Network Storage, 8 x POS
- Long transmission distance over coax cable
- Support up to 24-ch synchronous playback
| Video / Audio input | |
| Video Compression | H.264 |
| Analog and HD-TVI Video Input | 24CH |
| Video Input Interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adapive |
| IP Input | Up to 24CH ( 1080P@30fps) |
| Audio Compression | G.711u |
| Audio Input | 16-CH, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way Audio Input | 1-CH, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI / VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60Hz |
| Encoding resolution | Main Stream: 1080P (Non-Real-Time) / 720P / VGA / WD1 / 4CIF / CIF Sub-Stream: WD1(12fps) / 4CIF(12fps) / CIF / QCIF / QVGA |
| Frame rate | Main Stream: 1 / 16 fps ~ Real-Time Frame Rate Sub-Stream: 1 / 16 fps ~ Real-Time Frame Rate |
| Video Bit Rate | 32 Kbps-6 Mbps |
| Audio Output | 1CH, RCA (Linear, 1 kΩ) |
| Audio Bit rate | 64 Kbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 24CH |
| Playback Resolution | 1080P / 720P / V GA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote Connections | 128 |
| Network Protocols | TCP / IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 8 SATA Interfaces for 8 HDDs; 1 eSATA Interface |
| Capacity | Up to 6TB Capacity for Each Disk |
| External interface | |
| Network Interface | 2:10M / 100M / 1000M Self-Adaptive Ethernet Interface |
| Serial Interface | RS-232, RS-485, Keyboard |
| USB Port | 3 × USB2.0 |
| Alarm In/ Out | 16/ 8 |
| General | |
| Power Supply | 100 ~ 240VAC, 47 ~ 63HZ |
| Consumption | ≤ 60W |
| Working Temperature | 14°F - 131°F (-10 °C ~ +55 °C) |
| Working Humidity | 10% ~ 90% |
| Casing |
19in Rack-Mounted 2U Casing |
| Dimensions ( WxDxH) | 417.5 × 18.5 × 3. 5in (45 × 470 × 90mm) |
| Weight | 17.6lb (≤8kg) |
Products specifications
| Technology | HD-TVI, Hybrid |
| Number of Channels | 24Ch |
