Manufacturer: LTS Security

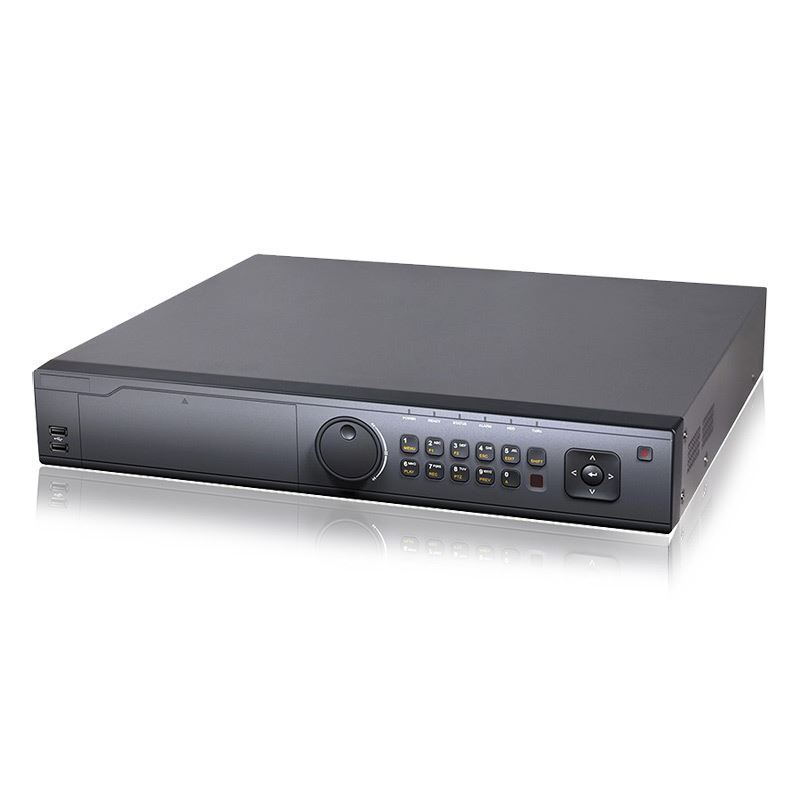

32Ch 4K HD TVI DVR 8MP Support + 8Ch IP RAID (LTD8432K-ST)

2 review(s)
SKU: 121780
MPN: LTD8432K-ST
Enterprise level 32Ch 4K security system DVR, the LTD8432K-ST is a 5 in 1 HD security DVR, supporting HD-TVI, CVI, A-HD, Analoh And IP for up to 8MP 4K resolution making the LTD8432K-ST a superior security camera dvr for your business or establishment, with H.265+ video compression and 4Ch of audio inputs, Dual HDMI, Dual Ethernet and RAID support, clear and smooth video on mobile remote view and playback for both iOS and Android mobile devices.
$1,379.99
$2,029.99

Storage calculator

Availability: In stock
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
Product Highlights
Number of Channels32Ch
TechnologyHD-TVI, Hybrid

LTD8432K-ST 4K Ultra HD resolution support up to 8MP TVI/IP cameras supported, compatible with HD-TVI, CVI, A-HD, Analog and IP for an enterprise level system that would give you maximum coverage & resolution for your business or establishment.

  • 1.5U case with 4 HDD interface
  • 32 Channel Video Recorder
  • Support HD-TVI (up to 4K/8MP) / AHD/ ANALOG / CVI / IP input (5 in 1)
  • Support Live View, Storage, Playback up to 32 HD-TVI/Analog Cameras + 8 IP Cameras up to 8MP
  • Up to 40CH  4K(8MP) IPC input
  • Up to 4K (3840*2160) HDMI Video Output
  • HDMI 1/VGA output @1920*1080, HDMI 2 output@ 4K,  CVBS output
  • 4 SATA up to 8TB each HDD
  • 2 USB 2.0/ 1 USB 3.0
  • RAID 0, 1, 5, 6, 10
  • 3 yeas warranty



LTD8432K-ST Specs: Video / Audio input
Video compressionH.265+/H.265/H.264Zip+/H.264
HD-TVI video input32-ch
Video input interfaceBNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP input8-ch (up to 40-ch); Up to 8MP resolution; Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compressionG.711u
Audio input4-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output

HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

Encoding resolution

5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame rateMain stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30f ps ( N )
Video bit rate32 Kbps- 10 Mbps
Audio output1-ch, RCA (Linear, 1 kΩ)
Audio bit rate64 Kbps
Dual-streamSupport
Stream typeVideo, Video & Audio
Synchronous playback16ch
Network
Remote connection128
Network protocolsTCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS
Hard disk
SATA4 SATA
CapacityUp to 8TB capacity for each disk
External interface
Network interface2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interfaceRS-232, RS-485 (full duplex), Keyboard
USB port2 × USB 2.0, Rear Panel 1 x USB 3.0
General
Power supplyAC 100 to 240V
Power Consumption≤65W
Working temperature-10 °C~+55°C (14°F ~ 131 °F)
Working humidity10% ~ 90%
Dimension 445 × 390 × 70mm (17.5 × 15.4 × 2.8 inch)
Weight≤7Kg (15.4lb)
