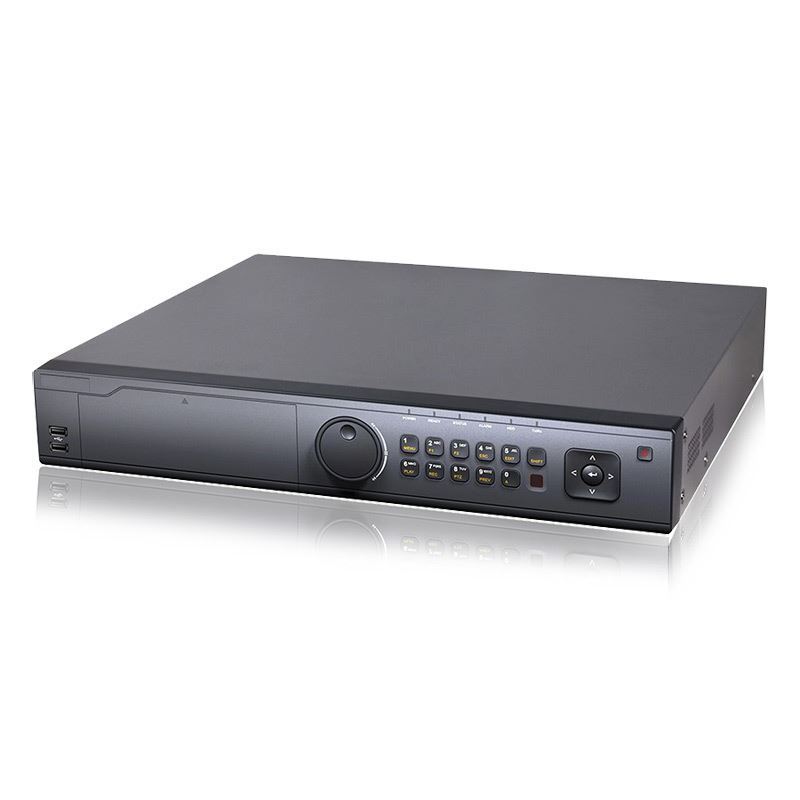

24Ch 4K HD TVI DVR 8MP Support + 8Ch IP (LTD8424K-ST)

SKU: 121779
Availability: In stock

Accepted Payments

The LTD8424K-ST is a 24Ch 5 in 1 HD security DVR, supporting 5 different technologies HD-TVI, CVI, A-HD, Analoh And IP Cameras making the LTD8424K-ST the perfect high definition for implementation, with H.265+ video compression and 4Ch of audio inputs, This DVR supports up to 4K 8MP ultra HD resolution , HD-TVI and standard cameras connect using BNC connectors over Coaxial cable in addition to the 8 IP cameras over the network. clear and smooth video on mobile remote view and playback for both iOS and Android mobile devices.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)

4K Ultra HD resolution support up to 8MP TVI cameras supported, mix and match HD-TVI, CVI, A-HD, Analog and IP for a cost effective system that would give you the coverage you need at the resolution you want, LTD8424K-ST comes with 3 yeas warranty.

  • 1.5U case with 4 HDD interface
  • 24 Channel Video Recorder
  • Supports 4k(8MP) HDTVI cameras
  • Support TVI(up to 5MP) / AHD/ ANALOG / CVI / IP input (5 in 1)
  • Support Live View, Storage, Playback up to  24TVI/Analog Cameras + 8 IP Cameras up to 8MP
  • Up to 32CH  4K(8MP) IPC input.
  • Up to 4K (3840*2160) HDMI Video Output
  • HDMI 1/VGA output @1920*1080, HDMI 2 output@ 4K, CVBS output
  • 4 SATA up to 8TB each HDD
  • 2 USB 2.0/ 1 USB 3.0
  • RAID 0, 1, 5, 6, 10


LTD8424K-ST Specs: Video / Audio input
Video compression H.265+/H.265/H.264Zip+/H.264
HD-TVI video input 24-ch
Video input interface BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
IP input 8-ch (up to 32-ch); Up to 8MP resolution; Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output

HDMI1/VGA: 1 -ch , 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz
HDMI2: 1-ch, 4K(3840 × 2160)/30Hz, 2K(2560 × 1440)/60Hz, 1920× 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz

Encoding resolution


Frame rate Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30f ps ( N )
Video bit rate 32 Kbps- 10 Mbps
Audio output 1-ch, RCA (Linear, 1 kΩ)
Audio bit rate 64 Kbps
Dual-stream Support
Stream type Video, Video & Audio
Synchronous playback 16ch
Remote connection 128
Hard disk
Capacity Up to 8TB capacity for each disk
External interface
Network interface 2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interface RS-232, RS-485 (full duplex), Keyboard
USB port 2 × USB 2.0, Rear Panel 1 x USB 3.0
Power supply AC 100 to 240V
Power Consumption ≤ 55W
Working temperature -10 °C~+55°C (14°F ~ 131 °F)
Working humidity 10% ~ 90%
Dimension  445 × 390 × 70mm (17.5 × 15.4 × 2.8 inch)
Weight ≤7Kg (15.4lb)
