| Product Highlights | |
| Number of Channels | 16Ch |
| Technology | HD-TVI, Hybrid |

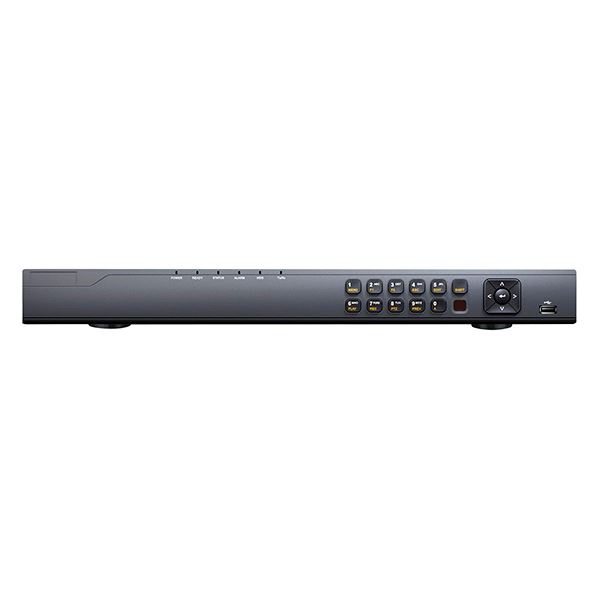

- 16Ch Hybrid Platinum DVR
- Supports 16 HD-TVI / Analog / A-HD Cameras + 2 IP Camera
- Up to 1080P HDMI Video Output
- Efficient Mode Recording : 960 x 1080 @30fps
- CVBS Video Output
- 2 SATA up to 12TB HDD
- H.264/H.264 Zip+
- 15” wide not standard rack-mount size
| LTD8316T-ET | |
| Video/ Audio Input | |
| Video Compression | H.264+ |
| Video Input | 16ch/ BNC (1.0 Vp-p, 75Ω), PAL / NTSC Self-adaptive |
| IP Input | Up to 2ch (Support ONVIF, up to 2MP resolution) |
| Audio Compression | G.711u |
| Audio Input | 1-ch, RCA (2.0 V-p, 1kΩ) |
| Two-Way Audio Input | 1-ch, RCA (2.0 V-p, 1kΩ) |
| Video/ Audio Output | |
| HDMI/ VGA Output | Up to 2560x1440 |
| CVBS Output | 1-ch, BNC (1.0 V-P, 1kΩ) |
| Frame Rate | Main Stream: 1/16 fps to real time frame rate/ Sub Stream: WD1/ 4CIF@12fps, CIF/QVGA/QCIF @real time frame rate |
| Video Bit Rate | 32 Kbps - 6Mbps |
| Audio Output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio Bit Rate | 64 Kbps |
| Dual-Stream | Support |
| Stream Type | Video, Video & Audio |
| Synchronous Playback | 16ch |
| Network | |
| Remote Connections | 128 |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iS CSI, UPnP™, HTTPS |
| Hard Disk | |
| SATA | 2 SATA |
| Capacity | Up to 6TB capacity for each disk |
| External Interface | |
| Network Interface | 1:10M/ 100M/ 1000M self-adaptive Ethernet interface |
| Serial Interface | RS-485 |
| USB Port | 1 x USB2.0, 1 x USB3.0 |
| Alarm In/ Out | - |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤30W |
| Working Temperature | -10°C ~ + 55°C (14°F - 131°F) |
| Working Humidity | 10% ~ 90% |
| Chassis | 1U Chassis |
| Dimesnsions | 380 X 320 X 45mm (15.0 X 12.6 X 1.8 inch) |
| Weight | ≤2Kg (4.4lb) |
