- H.264 & Dual-stream video compression
- Support HD-TVI/Analog/IP camera triple hybrid
- Full channel 1080P@ 30fps or 720P@ 30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 8ch synchronous playback

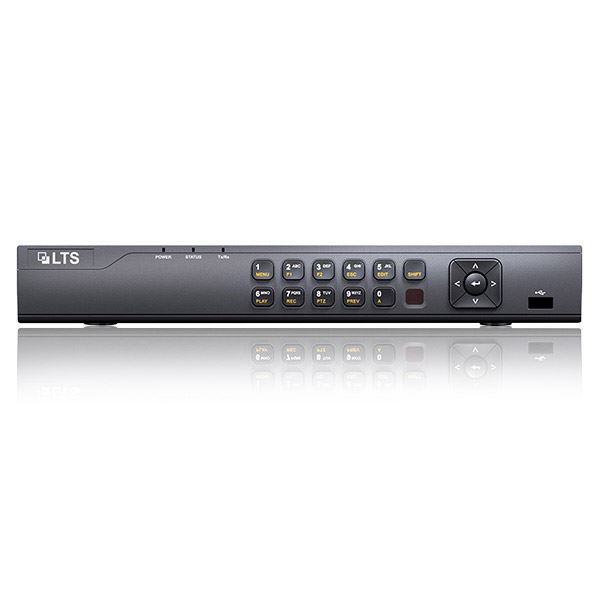

| LTD8308T-ST | |
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 8-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input | 2ch(1080p@30fps) |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA (2.0 Vp-p, 1 kΩ)(using the 1st channel of audio input) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI/VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Encoding resolution | Main stream: 1080P / 720P / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video bit rate | 32 Kbps-8 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 8-ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connection | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 2 SATA interface |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 1:10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 × USB2.0 |
| Alarm in/out | 8/4 |
| General | |
| Power supply | 12V DC |
| Power Consumption | ≤ 20 W |
| Working temperature | -10 °C~+55°C(14°F ~ 131 °F) |
| Working humidity | 10% ~ 90% |
| Dimension | 445 x 290 x 45 mm(17.5" x 11.4" x 1.8") |
| Weight | ≤ 2 kg (4.4 lb) |
Products specifications
| Number of Channels | 8Ch |
| Technology | HD-TVI, Hybrid |
Product reviews
Simply Amazing
We were skeptical at first for the low price, but this blew out old camera system away for not even half the price of what we paid for just old system. super clear picture.
Guest
|
8/31/2015 11:23 PM
Was this review helpful?
(0/0)
works smooth so far
we've had this DVR to replace our old Analog, we are very happy that we were able to keep some of our old cameras and use existing wiring, great picture and super easy to use.
Guest
|
9/9/2015 1:13 AM
Was this review helpful?
(0/0)
