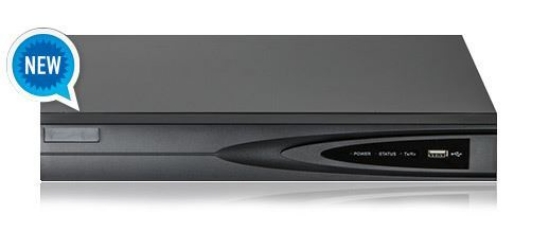

8CH HD-TVI 720p DVR System (TVST-PHD-08T)

SKU: 141664

Accepted Payments

8Ch HD-TVI Hybrid DVR, Supports Both TVI and Analog 960H REAL-TIME Live / 720p @120FPS Pentaplex Recording / 720p@240FPS Playback • H.264 • iPhone® Android® App Available. Crystal Clear 720p Live Video • Dual Streaming • RS-485 for PTZ control • DDNS Support
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • PHD Series DVR detects Analog / 960H / HD-TVI camera automatically.
  • H.264 & Dual-Stream Video Compression
  • Support HD-TVI/Analog/IP Camera Triple Hybrid
  • Support both HD-TVI & Analog cameras with adaptive access
  • Full Channel@720P Resolution Real-Time Recording
  • HDMI & VGA Output at up to 1920×1080P Resolution
  • Long transmission distance over coax cable
  • Support up to 16Ch Synchronous Playback at 1080P Resolution


Video/Audio Input
Video Compression H.264
Analog & HD-TVI Video Input 8Ch / BNC Interface (1.0Vp-p, 75Ω)
Supported Camera Types 720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio Compression G.711u
Audio Input/Two-way Audio In 1-ch, RCA (2.0 Vp-p, 1 KΩ)
VIDEO/Audio Output
HDMI/VGA Output 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 10 24 × 768 / 60 Hz
Encoding Resolution Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame Rate Main stream: 1/16 fps ~ Real time frame rate
Sub-stream: 1/16 fps ~ Real time frame rate
Video Bitrate 32 Kbps-6 Mbps
Audio Output 1-ch, RCA (Linear, 1KΩ)
Audio Bitrate 64 Kbps
Dual Stream Support
Stream Type Video, Video & Audio
Synchronous Playback 8Ch
Playback Resolution 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network Management
Remote Connections 128
Hard Disk
SATA 1 SATA Interface
Capacity Up to 4 TB capacity for each disk
External Interface
Network Interface 1; 10M / 100M self-adaptive Ethernet interface
Serial Interface 1; standard RS-485 serial interface, half-duplex
USB Port 2 x USB 2.0
Power Supply 12V DC
Consumption (without hard disks) ≤ 20W
Working Temperature -10 °C ~+55 °C (14 °F ~ 131 °F)
Working Humidity 10%~90%
Chassis 1U chassis
Dimensions (W x D x H) 315 × 242 × 45mm (12.4 × 9.5 × 1.8 inch)
Weight (without hard disks) ≤ 1.5kg (3.3lb)

Guarding Expert Mobile App Available :

iOS App Android App

Here is Intro tutorial video how to set up Guarding Expert App

Guarding Expert App Intro Video

Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Good deal for the price
I love this DVR, the price is right and 720p picture quality.
From: Guest | Date: 9/9/2015 1:08 AM
Was this review helpful? Yes No (0/0)
Products specifications
Technology HD-TVI
Number of Channels 8Ch
