| Product Highlights | |
| Number of Channels | 4Ch |
| Technology | HD-TVI, Hybrid |
- H.264 & Dual-stream video compression
- Support HD-TVI/Analog/IP camera triple hybrid
- Full channel 1080P@ 12fps or 720P@ 30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 4ch synchronous playback

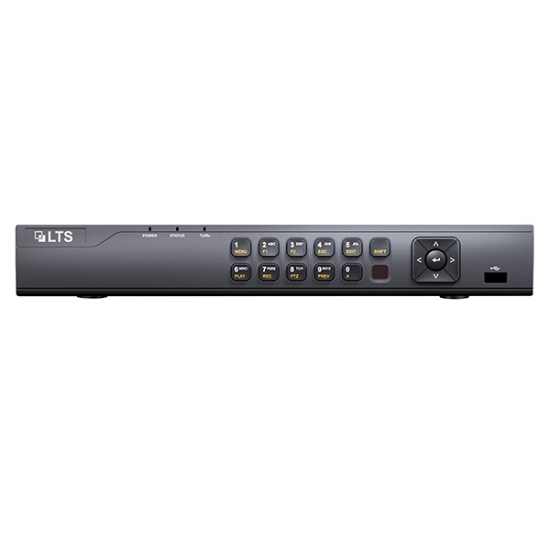

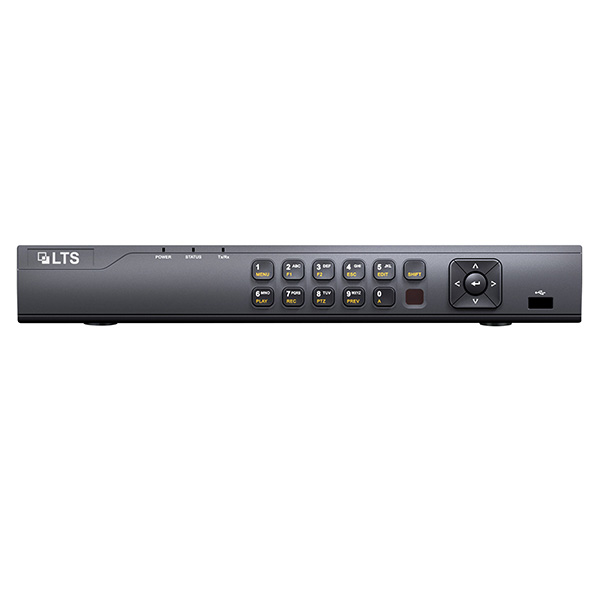

| LTD8304T-FT | |
| Video / Audio input | |
| Video compression | H.264 |
| HD-TVI video input | 4-ch |
| Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input | 1ch(1080p@30fps) |
| Audio compression | G.711u |
| Audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI/VGA output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Encoding resolution | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF |
| Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA | |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate |
| Sub-stream: 1/16 fps ~ Real time frame rate | |
| Video bit rate | 32 Kbps-6 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 4-ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connection | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 1:10M / 100M self-adaptive Ethernet interface |
| Serial interface | 1; standard RS-485 serial interface, half-duplex |
| USB port | 2 × USB2.0 |
| General | |
| Power supply | 12V DC |
| Power Consumption | ≤ 15 W |
| Working temperature | -10 °C~+55°C(14°F ~ 131 °F) |
| Working humidity | 10% ~ 90% |
| Chassis | 1U chassis |
| Dimension | 315 × 230 × 45 mm (12.4" x 9.1" x 1.8") |
| Weight | ≤ 1.5 kg (3.3 lb) |
