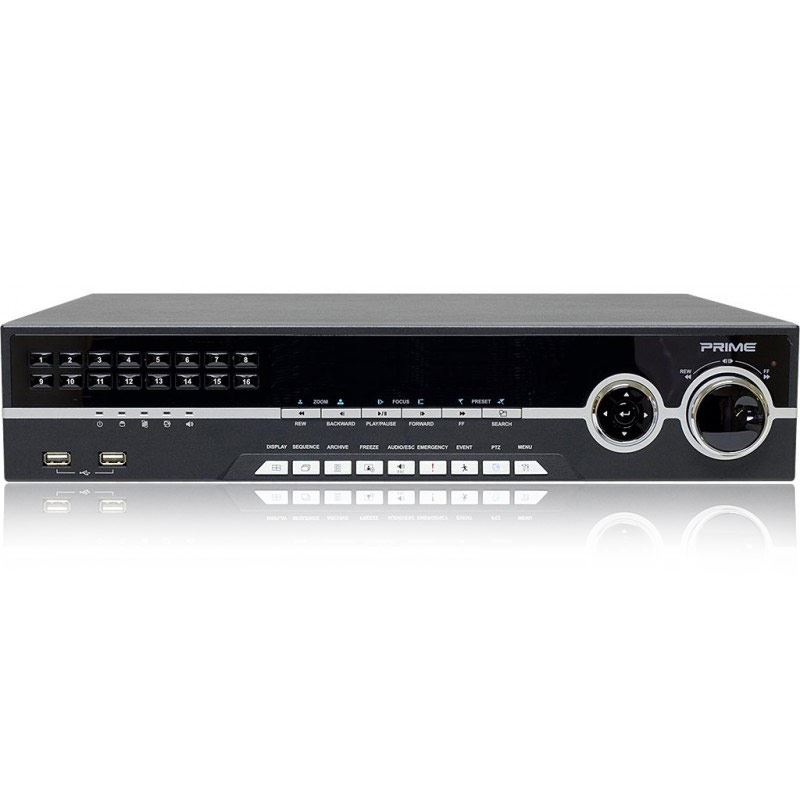

HD-SDI 8 Channel FULL HD Security DVR (XVST-MAGIC-08P)

SKU: 141315
MPN: XVST-MAGIC-08P
Call for price

Accepted Payments

Real-time Live Display and Recording H.264® High Compression Codec High Speed Network Video Transmission Advanced PTZ Control • Programmable Spot Out Crystal Clear 1080p blu-ray quality live video Smart Phone support
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)

KEY FEATURES

  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom (Live & Playback)
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 352 area settings
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority up to 8 Users
  • De-interlacer upon live and playback
  • 12 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Mirroring
  • POS Interface
  • Dual CODEC engine for independent video transmission
  • Interactive setup via network
XVST MAGIC-08P
Video Individual HD/Analog selectable All Hybrid (Patent Pending)
Available source 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed
Output 1 HDMI / 1 VGA (simultaneously) / 1 Programmable SPOT with OSD
Audio input/output 8RCA/1RCA
Sensor In 8 (NC, NO selectable)
Alarm Out 6 TTL, 2 relay
Display Resolution (Pixel) 1280×1024, 1280×720, 1920×1080
Split Screen 1, 4, 8
Recording Resolution (Pixel) 720p, 1080p, 1080i, 960H, 720H, Mixed
Speed Total 240fps@1080p
Playback Display 1, 4, 8
Search Mode Calendar / Event / POS / Panorama / Thumbnail
Speed Total 120 fps @ 1080p
Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16, ×32, ×64, ×1/2, ×1/4] Frame to frame, Pause
Network Network Interface Gigabit Ethernet
Speed 60fps@1080p
Application Windows 2000 / XP / Vista / 7 / 8 (PC Client system & IE) / Mac
Web Browser Internet Explorer, Safari
Smart phone App Android, iPhone for live and search (Catcheye)
Backup Interface USB 2.0 × 3
Backup device External HDD / CD & DVD-RW / Network / Thumb Drive
The number of HDD 4 + 1 eSATA(No capacity limit)
Others Power Consumption 150W
Operationg Temperature 5 ~ 40°C (41~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 430(W) × 420(D) × 88(H)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Number of Channels 8Ch
Technology HD-SDI
