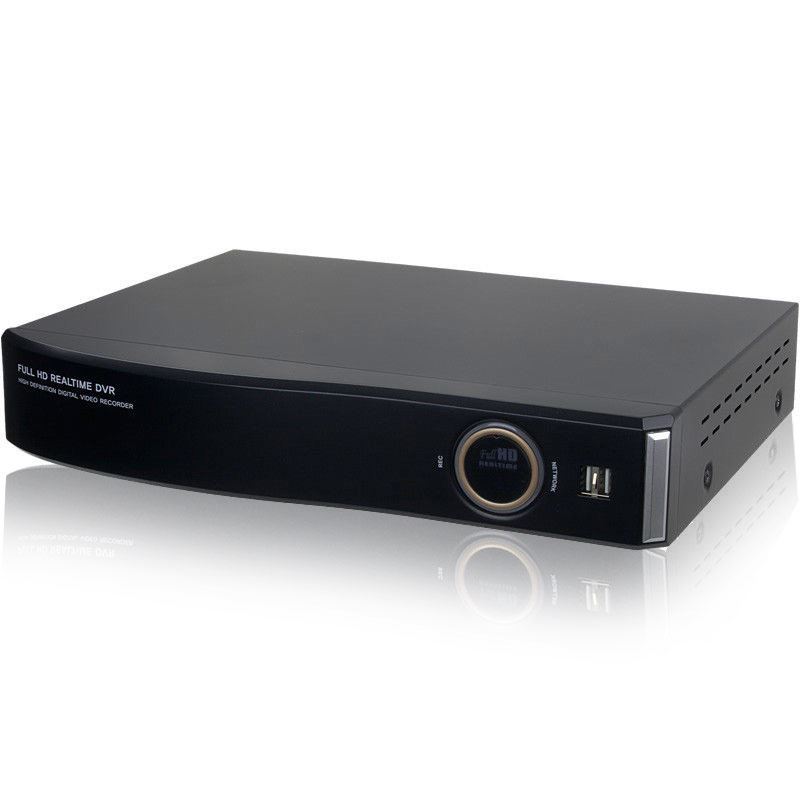

8 Channel HD-SDI FULL HD Realtime Recording DVR (XVST-NMS-08)

SKU: 141317
Call for price

Accepted Payments

1080p @240FPS REAL-TIME Live / Pentaplex Recording / [email protected] Playback • H.264 • Programmable Multi-CH Spot Out • iPhone® Android® App Available (MR.PATROL). Crystal Clear 1080p Live Video • Dual Streaming • Mac CMS application • POS Interface ready • RS-485 for PTZ control • Free DDNS Support
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • 720p/1080p/1080i HD-SDI format support
  • 1×HDMI / 1×VGA
  • 1×Spot out (Programmable Quad View)
  • Multi-User Access
  • Digital Zoom
  • Relay alarm output
  • Sensor input
  • Gigabit Ethernet



Video Camera input 8 BNC
Available source 720p25,30,50,60/1080p25,30,50,60/1080i50,60/Composite/960H/Mixed
Output 1 HDMI+1 VGA (simultaneously) / 1 Programmable SPOT with OSD
Audio Audio input 4 RCA
Output 1 RCA
Sensor In 4 (NC, NO selectable)
Alarm Out 1 Relay
Operating System Embedded Linux OS
Display Speed Realtime
Resolution (Pixel) 1280×1024, 1280×720, 1920×1080
Split Screen 1 / 4 / 8
Recording CODEC H.264 / JPEG for 3G / Dual CODEC
Resolution (Pixel) 720p, 1080p,1080i, 960H, 720H, Mixed
Picture Quality 4 steps (Super/High/Medium/Low)
Speed 240fps @ 1080p
Playback Display 1 / 4 / 8
Search Mode Calendar / Event / POS / Panorama / Thumbnail
Speed 120 fps @ 1080p
Fast/Slow speed Normal, REW & FF [recorded speed ×2, ×4, ×8, ×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
Network Network Interface 1Gbps (Gigabit Ethernet)
Speed [email protected]
Protocol TCP/IP / HTTP / DHCP
Application Windows 2000 / XP / Vista / 7 / 8 (PC Client system & IE) / Mac
Web Browser Internet Explorer
Smart phone App Android, iPhone for live and search
Backup Interface USB 2.0 × 2
Backup device External HDD / CD & DVD-RW / Network / Thumb Drive
The number of HDD 2 SATA(No capacity limit ; 4TB of more)
  • Full GUI with alpha blending
  • Individual setting of resolution, frame rates and picture quality
  • Instant Replay
  • Digital Zoom
  • Mouse Control
  • Weekly scheduler with holiday by 10 minutes setting
  • Covert, Disable and Private function of cameras
  • Motion Detection with 352 area setting
  • Relay alarm output
  • PTZ control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi User Authority up to 8 Users
  • Deinterlacer upon live and playback
  • 12 languages with full graphic
  • Individual Network port setting
  • Auto Deletion
  • Import and Export the configuration
  • Mirroring
  • POS Interface
  • Dual CODEC engine for independent video transmission
  • Interactive setup via network
Others Power Consumption 50W
Operating Temperature 5 ~40°C(41~104°F)
Relative Humidity Maximum 80% non-condensing
Dimension 340(W)×250(D)×60(H) mm



Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Existing reviews
Great Picture Quality
Very happy with this DVR picture quality, the only thing is SDI takes up a lot of Hard drive space. Next time I would go with EX-SDI or TVI
From: Guest | Date: 6/1/2020 11:10 PM
Was this review helpful? Yes No (0/0)
Products specifications
Number of Channels 8Ch
Technology HD-SDI
