Manufacturer: UnixCCTV

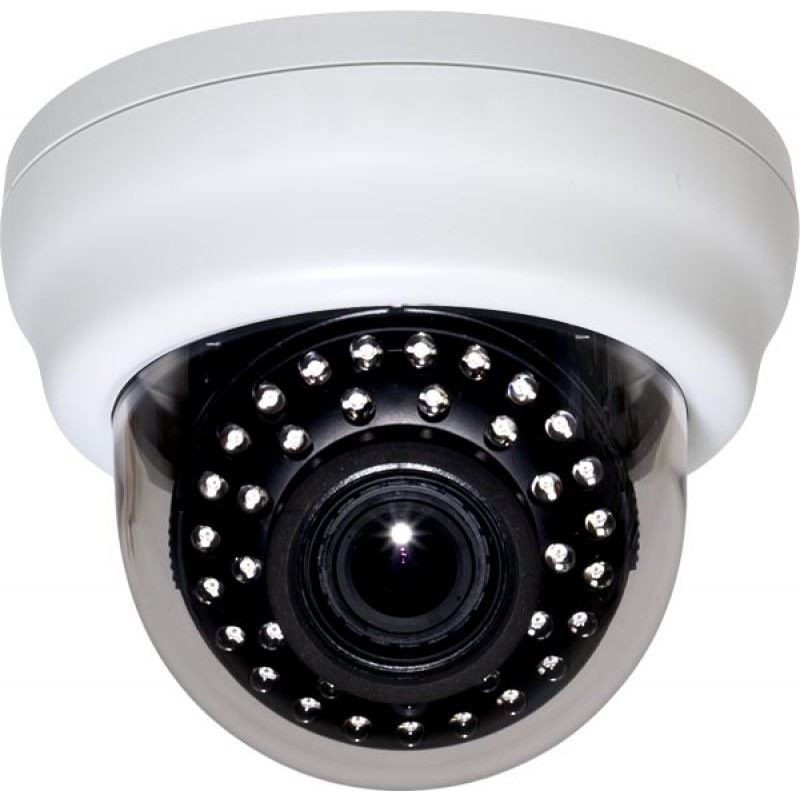

HD-SDI 1080p SUPERDOME® IR Camera w/ ICR & Dual Power (XDR-244FV)

SKU: 141300
MPN: XDR-244FV
$174.95
$215.94

HD-SDI FULL HD 1080p Dome Security Camera 2.8~12mm Mega-pixel AVF Lens • DC 12V or AC 24V True Day & Night(ICR)
Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Camera FeaturesWDR
Resolution2MP/1080p
TechnologyHD-SDI
Lens2.8-12mm

FEATURES

  • 1/3" SONY CMOS
  • HD-SDI(1080p, 720p) / High resolution (1000 TV line over)
  • HD-SDI(High Definition Serial Digital Interface) / 0 lux at IR on (IR LED 40pcs)
  • OSD Controlled / True day & night(ICR)
  • DNR(Digital Noise Reduction) / Motion / Privacy / Easy instalation
  • 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)
  • DC 12V / AC 24V

SPECIFICATIONS

XDR 244FV
ResolutionHD-SDI(1080p, 720p) / 1000 TV line over
Sensor1/3" Sony CMOS
Total Pixels2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels1944(H) × 1092(V) = 2.1M Pixel
Scanning SystemProgressive
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE292M (HD-SDI)
Min.Illumination0 lux at IR on
White BalanceAuto / Auto EXT / Pushing / Manual
Electronic Shutter SpeedAuto / Manual (1/30sec ~ 1/30,000sec)
BrightnessAdjustable (0 ~ 20 Step)
SENS_UPOff / ×2 / ×3 / ×4
DNROff / Low / Middle / Hi
WDR / BLCOff / Single scan WDR / BLC
HLMOff / Set
ACEOff / On
Day & NightAuto (Day <--> Night time change) , Color , B/W
PrivacyOff / On (28 Zone)
Motion DetectionOff / On
D.ZOOM0 ~ ×112
FLIPOff / On
FREEZEOff / On
LanguageEnglish
SharpnessAdjustable (0 ~ 10 Step)
MirrorOn / Off
COMM.RS-485(PELCO-D)
Operating Temperature / Humidity14°F~122°F (-10°C~+50°C) / 30%~80% RH
Storage Temperature / Humidity-4°F~+140°F (-20°C~+60°C) / 20%~90% RH
PowerDC 12V / AC 24V
Distance300 ~ 450ft (100 ~ 150m)
Transmission rangeMax transmission range is depends on the cable manufacturer and the installation environment.
