Manufacturer: UnixCCTV

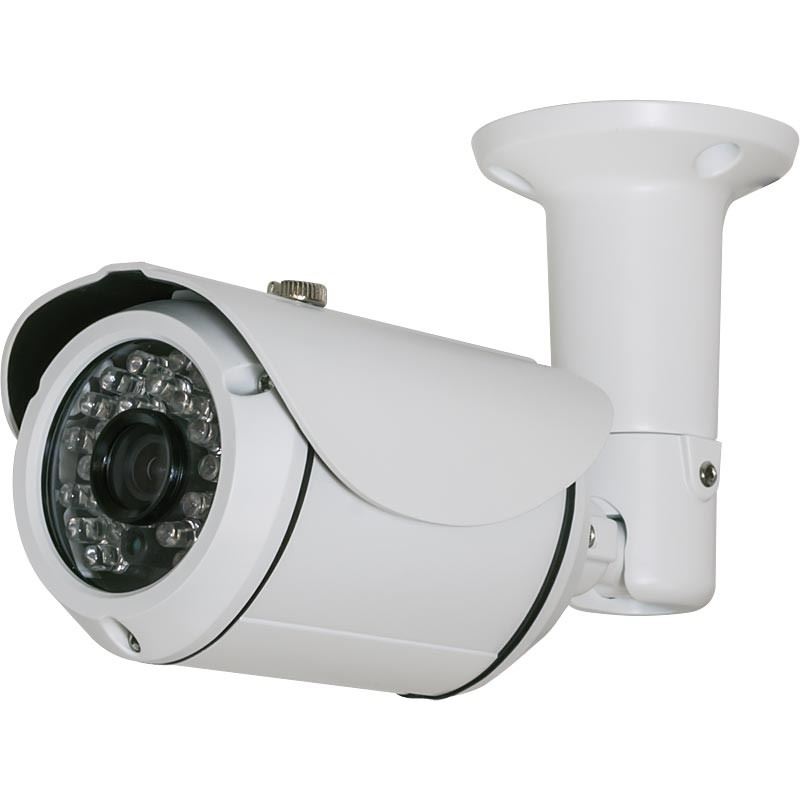

HD-SDI 1080p Short Range Outdoor Infrared Bullet Camera w/ ICR 4.3mm (XIR-2522)

SKU: 141291
MPN: XIR-2522
HD-SDI FULL HD 1080p Bullet Security Camera 4.3mm Mega-Pixel Fixed Lens • DC 12V 25 IR LED / Range up to 60ft • Smart IR True Day & Night(ICR)
$134.95
$161.94

Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Camera FeaturesOutdoor
Resolution2MP/1080p
TechnologyHD-SDI
Lens4.3mm

KEY FEATURES

  • 1/2.9" Sony CMOS
  • HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
  • HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 25pcs)
  • Upgraded waterproof housing (IP67 rating) / Smart IR / True Day & Night(ICR)
  • DNR (Digital Noise Reduction) / Easy installation
  • Fixed lens 4.3mm

SPECIFICATIONS

XIR 2522
ResolutionHD-SDI(1080p, 720p) / 1000 TV line over
Sensor1/2.9" Sony CMOS
Total Pixels2000(H) × 1241(V) = 2.5M Pixel
Effective Pixels1944(H) × 1092(V) = 2.1M Pixel
Scanning SystemProgressive
S/N (Y signal)More than 52 dB (AGC Off)
Video OutputSMPTE292M (HD-SDI)
Min.Illumination0 lux at IR On
White BalanceAuto
Electronic Shutter SpeedAuto (1/30sec ~ 1/60,000sec)
BrightnessAdjustable (0 ~ 20 Step)
DNRHIGH
Day & NightEXTERN
LanguageENGLISH
Operating Temperature / Humidity-10°C~+50°C / 30%~80% RH
Storage Temperature / Humidity-20°C~+60°C / 20%~90% RH
PowerDC 12V Only
Signal TransmissionThe distant difference is occurred according to cable option and other circumstances. (based on RG59: 100M)
