Manufacturer: UnixCCTV

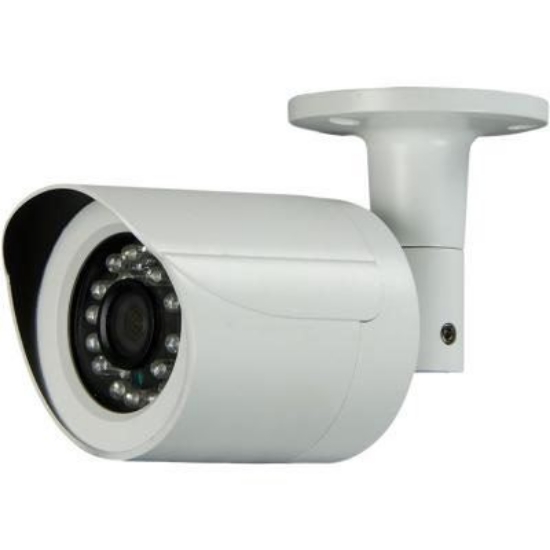

HD-SDI 1080p IR Bullet Camera / 24IR / ICR / 3.6mm 3MP Lens (XIR-1202)

SKU: 141294
MPN: XIR-1202
$105.95
$199.94
HD-SDI • 2 Mega Pixel • 1080p • 3DDNR • 24IR LED up to 60ft 3.6mm 3MP Lens • External Lens Control • IP66 • DC 12V • Dual output(HD-SDI/Analog)
Share

Share this link via

Or copy link

Matching or higher specs replacement might be shipped on most SDI products, as the technology has been long discounted. All SDI sales are final.
  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
Camera FeaturesOutdoor
Lens3.6mm
Resolution2MP/1080p
TechnologyHD-SDI







SPECIFICATIONS

XIR 1202
Solution1/2.8" Mega Pixel Sensor
Signal SystemPAL/NTSC
Sync. SystemInternal Sync.
Effective Pixels2.0 Mega Pixels
Sensing AreaS.42mm × 3.41 mm
Horizontal ResolutionPAL:1920×1080P 2SF/S
NTSC: 1920×1O8OP 30F/S
Video Output1.0Vp-p75Ω
S/N RatioMore than 50dB (AGC OFF)
White BalanceAuto Tracking White Balance
Shutter Speed1/25-1/50000
Infrared LampsNight/Day ON/OFF
Minimum Illumination0 Lux(Infrared Lamps Turn on)
Infrared Wavelength850nm
IR Leds24 Pcs
Built-In Lens3.6mm 3 Mega Pixel Lens
Working Temperature-10°C-5O°C
Storage Temperature-20°C-5O°C
Power RequirementDC12V
