16 HD-SDI Magic DVR Replacement - Thursday, April 29, 2021
16ch HD-SDI EX-SDI DVR is now available, up to 8MP EX-SDI and up to 4MP SDI camera support now in stock as a Magic DVR replacement.

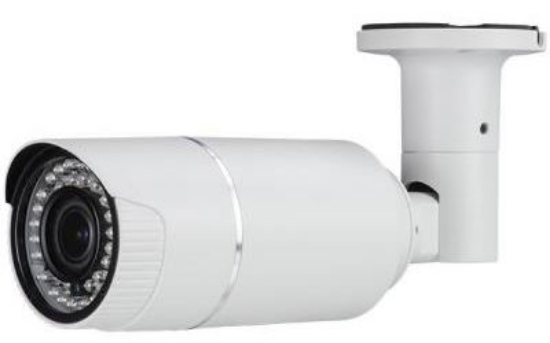

HD-SDI 1080p IR Bullet Camera / 42IR / ICR / 2.8-12mm AVF Lens (XIR-1412V-W)

SKU: 141290
MPN: XIR-1702V

Accepted Payments

XIR-1412V-W HD-SDI • 2 Mega Pixel • 1080p • 3DDNR • 42IR with ICR 2nd Gen LEDs 2.8~12mm 3MP Lens • External Lens Control • IP66 DC 12V • Dual output(HD-SDI/Analog)
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)



Solution 1/2.8” Mega Pixel Sensor
Signal System PAL/NTSC
Sync. System Internal Sync.
Effective Pixels 2.0 Mega Pixels
Sensing Area 5.42mm x 3.41mm
Horizontal Resolution PAL: 1920x1080P 25F/S
NTSC: 1920x1080P 30F/S
OSD Menu Support (Sense-up/2D NR, 3D NR/Digital Zoom/...etc.functions)
Video Output 1.0Vp~p75Ω
S/N Ratio More than 50dB (AGC OFF)
White Balance Auto Tracking White Balance
Shutter Speed 1/25-1/50000
Infrared Lamps Night/Day, ON/OFF
Minimum Illumination 0 Lux (Infrared Lamps Turn On)
IR Radiation Distance 20-25/30-35/45-50m
Built-in Lens 2.8~12mm Mega Pixel Lens
Working Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 60°C
Power Requirement DC 12V
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Resolution 2MP/1080p
Technology HD-SDI
Lens 2.8-12mm
