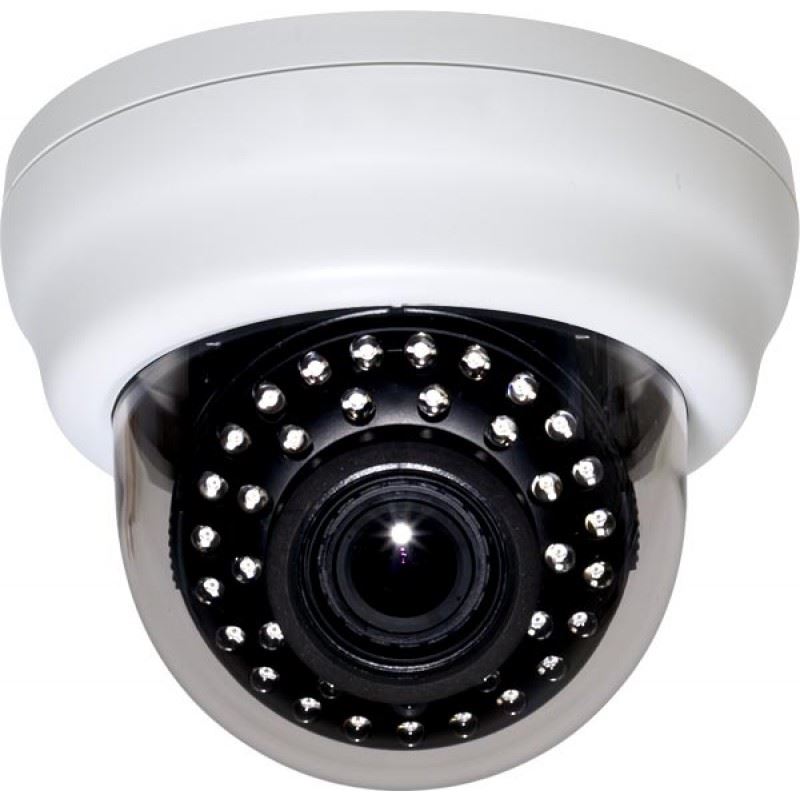

HD-SDI 1080p Indoor IR SUPERDOME® Camera w/ ICR (XDR-242FV)

SKU: 141302
MPN: XDR-242FV
$203.94
$167.95

Accepted Payments

HD-SDI FULL HD 1080p Dome Security Camera 2.8~12mm Mega-pixel AVF Lens • DC 12V True Day & Night(ICR)
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)

FEATURES

  • 1/3" SONY CMOS
  • HD-SDI(1080p, 720p) / High resolution (1000 TV line over)
  • HD-SDI(High Definition Serial Digital Interface) / 0 lux at IR on (IR LED 40pcs)
  • OSD Controlled / True day & night(ICR)
  • DNR(Digital Noise Reduction) / Motion / Privacy / Easy instalation
  • 2.8~12mm DC auto IRIS vari-focal lens (external angle & focus control)

SPECIFICATIONS

XDR 242FV
Resolution HD-SDI(1080p, 720p) / 1000 TV line over
Sensor 1/3" Sony CMOS
Total Pixels 2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels 1944(H) × 1092(V) = 2.1M Pixel
Scanning System Progressive
S/N (Y signal) More than 52 dB (AGC Off)
Video Output SMPTE292M (HD-SDI)
Min.Illumination 0 lux at IR on
White Balance Auto / Auto EXT / Pushing / Manual
Electronic Shutter Speed Auto / Manual (1/30sec ~ 1/30,000sec)
Brightness Adjustable (0 ~ 20 Step)
SENS_UP Off / ×2 / ×3 / ×4
DNR Off / Low / Middle / Hi
WDR / BLC Off / Single scan WDR / BLC
HLM Off / Set
ACE Off / On
Day & Night Auto (Day <--> Night time change) , Color , B/W
Privacy Off / On (28 Zone)
Motion Detection Off / On
D.ZOOM 0 ~ ×112
FLIP Off / On
FREEZE Off / On
Language English
Sharpness Adjustable (0 ~ 10 Step)
Mirror On / Off
COMM. RS-485(PELCO-D)
Operating Temperature / Humidity 14°F~122°F (-10°C~+50°C) / 30%~80% RH
Storage Temperature / Humidity -4°F~+140°F (-20°C~+60°C) / 20%~90% RH
Power DC 12V Only
Distance 300 ~ 450ft (100 ~ 150m)
Transmission range Max transmission range is depends on the cable manufacturer and the installation environment.

Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Camera Features Indoor
Camera Features WDR
Resolution 2MP/1080p
Technology HD-SDI
Lens 2.8-12mm
