KEY FEATURES
- 1/3" Sony CMOS
- HD-SDI (1080p, 720p) / high resolution (1000 TV line over)
- HD-SDI (High Definition Serial Digital Interface) / 0 lux at IR On (IR LED 25pcs)
- Upgraded water-resistant IP-67 housing / Smart IR / True Day & Night(ICR)
- DNR (Digital Noise Reduction) / Easy installation
- 4.3mm Mega Pixel IR Fixed lens
SPECIFICATIONS
XIB 2022
Resolution
HD-SDI(1080p, 720p) / 1000 TV line over
Sensor
1/3" Sony CMOS
Total Pixels
2010(H) × 1108(V) = 2.2M Pixel
Effective Pixels
1944(H) × 1092(V) = 2.1M Pixel
Scanning System
Progressive
S/N (Y signal)
More than 52 dB (AGC Off)
Video Output
SMPTE292M (HD-SDI)
Min.Illumination
0 lux at IR On
White Balance
Auto
Electronic Shutter Speed
Auto (1/30sec ~ 1/60,000sec)
Brightness
Adjustable (0 ~ 20 Step)
DNR
Middle
Day & Night
Extern
Language
English
Operating Temperature / Humidity
14°F~122°F (-10°C~+50°C) / 30%~80% RH
Storage Temperature / Humidity
-4°F~+140°F (-20°C~+60°C) / 20%~90% RH
Power
DC 12V Only
Signal Transmission
300 ~ 450ft (100 ~ 150m)
(Max transmission range is depends on the cable manufacturer and the installation environment.)
| Resolution | 2MP/1080p |
| Technology | HD-SDI |
| Lens | 4.3mm |

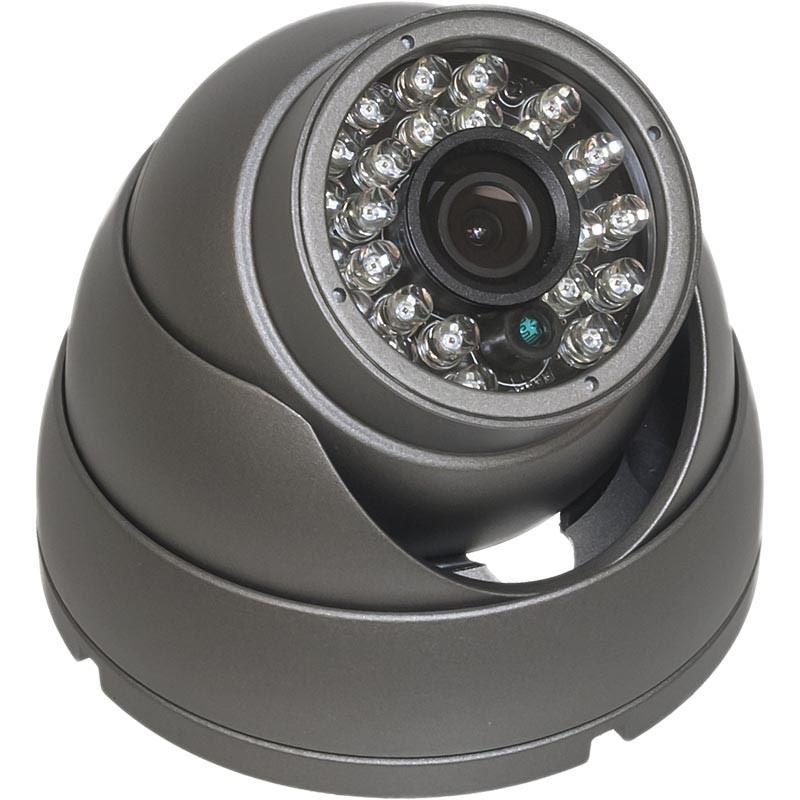

HD-SDI 1080p EYEBALL Infrared Dome Camera w/ ICR & Vari-focal Lens (XIB-2032FV)
