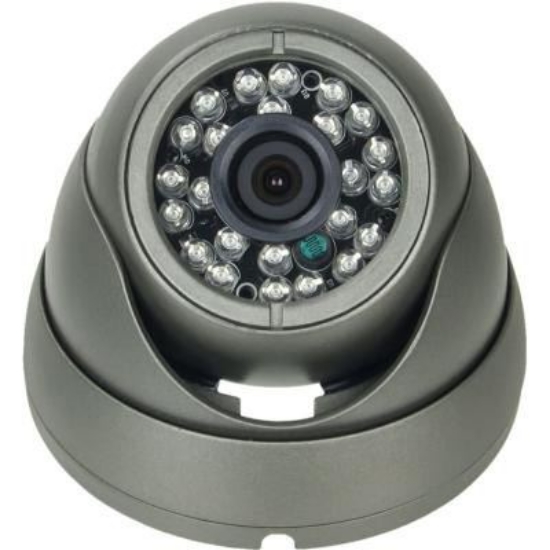

HD-SDI 1080p EyeBall Camera / 24IR / ICR / 3.6mm Lens (XIB-1022)

SKU: 141299
MPN: XIB-1022

Accepted Payments

HD-SDI Eyeball • 1080p • 3DDNR • ICR • 24IR 3.6mm 3 Mega Pixel Lens • DC 12V • Dual output(HD-SDI/Analog)
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


XIB 1022
Solution 1/2.8" Mega Pixel Sensor
Signal System PAL/NTSC
Sync. System Internal Sync.
Effective Pixels 2.0 Mega Pixels
Sensing Area 5.42mm×3.41mm
Horizontal Resolution PAL:1920×1080P 25F/S
NTSC:1920×1080P 30F/S
Video Output 1.0Vp-p75Ω
S/N Ratio More than 50dB (AGC OFF)
White Balance Auto Tracking White Balance
Shutter Speed 1/25-1/50000
Infrared Lamps Night/Day ON/OFF
Minimum Illumination 0 Lux(infrared Lamps Turn on)
Infrared Wavelength 850nm
IR LEDs 24 Pcs
Built-in Lens 3.6mm 3 Mega Pixel Lens
Working Temperature -10°C-50°C
Storage Temperature -20°C-60°C
Power Requirement DC12V, Max Power Consumption Less Than 5W
(when the infrared lamps turn on)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 3.6mm
Resolution 2MP/1080p
Technology HD-SDI
