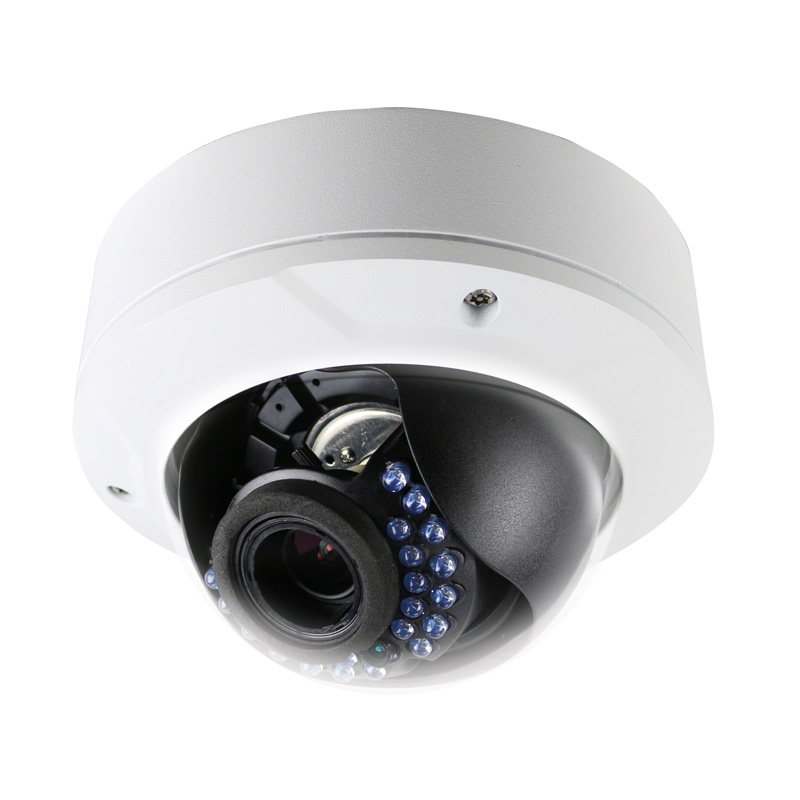

2MP Dome IP Camera Outdoor 2.8-12mm (CMIP7223-S)

SKU: 121646

Accepted Payments

2 megapixel (1920◊1080) high resolution, Full HD1080p real-time video, 2.8-12mm varifocal lens, Video Content Analytics(VCA), Region of Interest(ROI), IR LEDs: up to 100ft(about 30m), DWDR & 3D DNR & BLC, Onboard storage (up to 64GB), Audio I/O, Alarm I/O, IP66, Vandal-proof
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 2 megapixel (1920×1080) high resolution
  • Full HD1080p real-time video
  • 2.8-12mm varifocal lens
  • Video Content Analytics(VCA)
  • Region of Interest(ROI)
  • IR LEDs: up to 100ft(about 30m)
  • DWDR & 3D DNR & BLC
  • Onboard storage (up to 64GB)
  • Audio I/O, Alarm I/O
  • IP66
  • Vandal-proof


Image Sensor  1/2.8" progressive scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON)
0 Lux with IR
Shutter Speed 1/3s ~ 1/100,000s
Lens [email protected]
Angle of view: 86°
Lens Mount M12
Angle adjustment Horizontal: 0° ~ 360°, vertical: 0° ~ 75°, rotation: 0° ~ 360°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
Bit Rate 32 Kbps ~ 8 Mbps
Dual stream Yes
Max. Resolution 1920 x 1080
Frame Rate 60 Hz: 30 fps (1920 × 1080), 30fps (1280 × 960), 30 fps (1280 x 720)
50 Hz: 25 fps (1920 × 1080), 25 fps (1280 × 960), 25 fps (1280 x 720
Image Settings

Rotate mode, Saturation, Brightness, Contrast adjustable

by client software or web browser

BLC Yes, zone optional
ROI Support
Network Storage NAS (Support NFS, SMB/CIFS)
Alarm Trigger ntrusion detection, Line crossing detection, Motion detection, Dynamic
analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception



System Compatibility ONVIF, PSIA, CGI, ISAPI
General functionalities One-key reset, Flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access
Communication Interface 1 RJ45 10M / 100M ethernet port
Working Temperature
-22°F ~ 140°F(-30°C ~ 60°C )   humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, PoE (802.3af)
Power Consumption Max. 7.5W
Ingress Protection Level IP66
IR Range About 65 to 100ft(20-30m)
Dimension  Φ5.0"× 3.8"(Φ126.7 x 97.2 mm)
Weight 1.3lb(570g)
