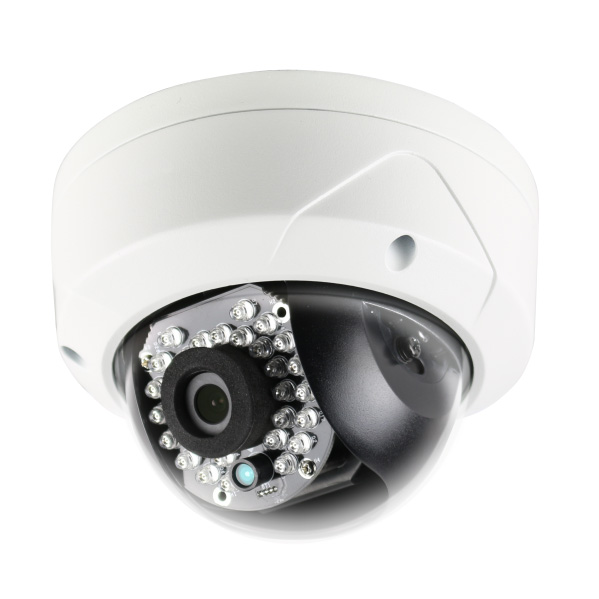

2MP Outdoor Dome IP Megapixel Camera 2.8mm (CMIP7422-28)

SKU: 121651
MPN: CMIP7422-28
Be the first to review this product
$229.95
$139.95

Accepted Payments

2 megapixel high resolution, HD real-time video, Video Content Analytics(VCA), Region of Interest(ROI), 3D DNR & DWDR & BLC, IR LEDs: up to 100ft(30m), IP66, Vandal-proof, PoE
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or Chat Live (Mon–Fri 8am–6pm CT)
  • 2 megapixel high resolution
  • HD real-time video
  • Video Content Analytics(VCA)
  • Region of Interest(ROI)
  • 3D DNR & DWDR & BLC
  • IR LEDs: up to 100ft(30m)
  • IP66
  • Vandal-proof
  • PoE



Camera
Image Sensor  1/2.8" sensor
Min. Illumination 0.05 [email protected], AGC ON
0 lux with IR
Shutter Speed 1/3s (1/4s) ~ 1/100,000s
Lens [email protected]
Angle of view: 98°
Lens Mount M12
Angle adjustment Pan: 0° ~ 355°, tilt: 0° ~ 65°
Day & Night ICR
Digital Noise Reduction 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264 / MJPEG
H.264 codec profile Main profile
Bit Rate 32 Kbps ~ 8 Mbps
Dual stream Yes
Max. Resolution 1920 × 1080
Frame Rate 60Hz: 30fps (1920 × 1080), 30fps (1280 x 960), 30fps (1280 x 720)
50Hz: 25fps (1920 × 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Image Settings Saturation, brightness, contrast adjustable through client software or web browser
BLC Yes,zone configurable
Network
Network Storage NAS
Alarm Trigger Motion detection, tampering alarm
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility ONVIF, PSIA, CGI
General functionalities User authentication, watermark
Interface
Communication Interface 1 RJ45 10M / 100M ethernet port
General
Working Temperature
/Humidity		 -22°F ~ 140°F(-30°C ~ 60°C )
Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 10%, PoE (802.3af)
Power Consumption Max. 5W (max. 7W with ICR on)
Impact protection IEC60068-2-75Eh, 50J; EN50102, up to IK10
Ingress Protection Level IP66
IR Range 100ft(30m)
Dimension  Φ4.4"x3.2"(Φ111.0 × 82.4 mm )
Weight 1.1 lbs(500g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Lens 2.8mm
Technology IP/Network
Resolution 2MP/1080p
Camera Features Outdoor
Camera Features Vandal Proof
Camera Features WDR
