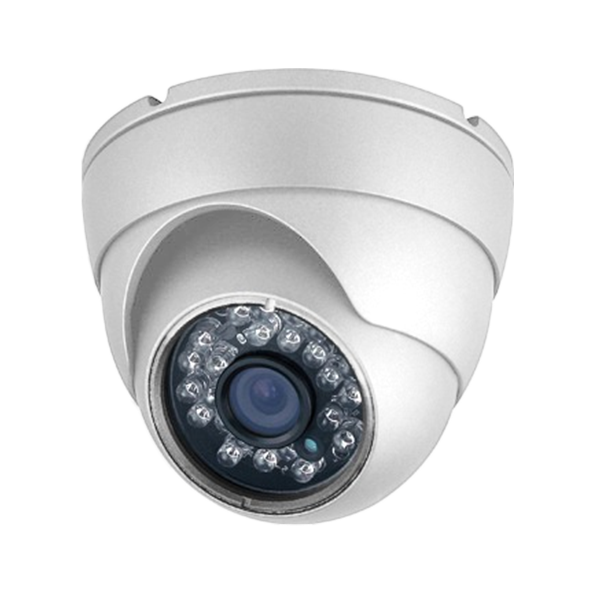

HD-TVI 1080p IR Turret Camera 2.8mm Wide lens (CMHT2422)

SKU: 121683

Accepted Payments

CMHT2422 HD-TVI 1080P Turret Camera,HDTVI technology, 1/3"Sensor,2.8mm Fixed Lens,30 IR LEDs up to 60ft(20m)IR distance, DC 12V, for indoor and outdoor.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  •  1/3" Sensor
  •  HD 1080P Video Output
  •  Adopts HDTVI Technology
  •  2.8mm Fixed Lens
  •  24pcs IR LEDs up to 65ft(20m)
  •  DC 12V


Image Sensor  1/3"Sensor
Signal System NTSC / PAL(Euro Version)
Effective Pixels 1920(H)×1080(V)
Min. Illumination 0 Lux(Infrared Lamps Turn on)
Shutter Speed NTSC: 1/30 ~ 1/50,000
PAL: 1/25 ~ 1/50,000
Lens   2.8mm
Day & Night ICR
Synchronization Internal synchronization
S/N Ratio More than 50dB
Working Temperature
40°F - 140°F(-40 °C - 60 °C )
Humidity 85% or less (non-condensing)
Power Supply 12V DC
Power Consumption Max.5W
Weather Proof Ratings IP66
Infrared Red Lamps 24 pcs
IR Range Up to 60ft(20m)
Dimension  3.7'' × 2.4'' ( 93.0 x 62.0mm)
Weight 0.9lb(400g)
