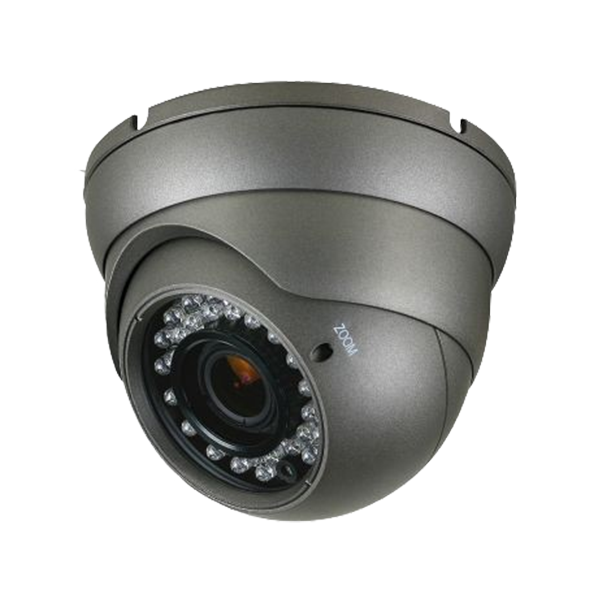

- 1/2.8" Sensor
- HD 1080P Video Output
- Adopts HDTVI Technology
- 2.8-12mm Varifocal Lens
- 36 pcs IR LEDs up to 100ft(30m)
- DC 12V
| CMHT2023AB | |
| Image Sensor | 1/2.8"Sensor |
| Signal System | NTSC / PAL(Euro Version) |
| Effective Pixels | 1920(H)×1080(V) |
| Min. Illumination | 0 Lux(Infrared Lamps Turn on) |
| Shutter Speed | NTSC: 1/30 ~ 1/50,000 PAL: 1/25 ~ 1/50,000 |
| Lens | 2.8-12mm |
| Day & Night | ICR |
| Synchronization | Internal synchronization |
| S/N Ratio | More than 50dB |
| General | |
| Working Temperature /Humidity |
14°F - 122°F(-10 °C - 50 °C ) |
| Humidity 85% or less (non-condensing) | |
| Power Supply | 12V DC |
| Power Consumption | Max.5W |
| Weather Proof Ratings | IP66 |
| Infrared Red Lamps | 36 pcs |
| IR Range | Up to 100ft(30m) |
| Dimension | 4.7'' × 3.5'' ( 120 x 90mm) |
| Weight | 1.5lb(710g) |
Products specifications
| Resolution | 2MP/1080p |
| Technology | HD-TVI |
| Camera Features | Outdoor |
| Lens | 2.8-12mm |
