16 HD-SDI Magic DVR Replacement - Thursday, April 29, 2021
16ch HD-SDI EX-SDI DVR is now available, up to 8MP EX-SDI and up to 4MP SDI camera support now in stock as a Magic DVR replacement.

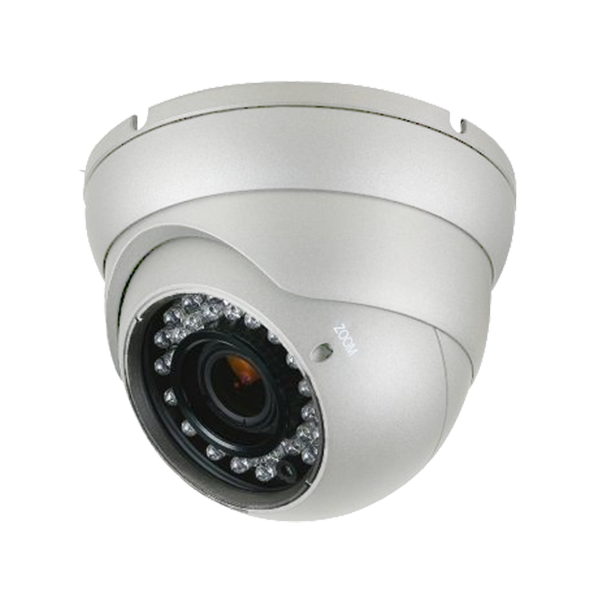

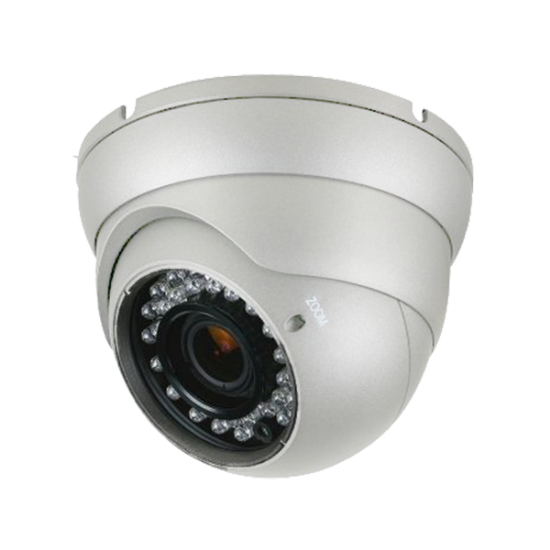

2MP HD-TVI IR Turret Camera 2.8-12mm lens (CMHT2023R-A)

SKU: 121760

Accepted Payments

The CMHT2023R-A is 1080p 2MP HD-TVI & Analog 960H Dome Turret IR Camera, with adjustable lens 2.8-12mm, and up to 100ft of Night vision distance at complete darkness, The CMHT2023R-A is a white colored and complete in a metal weatherproof for outdoor use.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)
  • 1/2.8" Sensor
  •  HD 1080P Video Output
  •  Adopts HDTVI Technology
  •  2.8-12mm Varifocal Lens
  •  36 pcs IR LEDs up to 100ft(30m)
  •  DC 12V


Image Sensor 1/2.7" CMOS
Signal System NTSC/PAL
Effective Pixels 1920 (H)* 1080(V)
Min Illumination 0.1 Lux, 0 Lux with IR
Shutter Speed 1/30 (1/25)s to 1/50,000 s
Lens 2.8-12mm, FOV: 96°
Day & Night ICR
Synchronization Internal
Video Frame Rate 1080p@30fps/ 1080p@25fps
Video Output 1 BNC (CVBS&HD TVI)
S/N Ratio More than 52dB
Working Temperature/Humidity -4°F - 122°F (-20°C - 50°C) / Humidity 90% or less (non-condensing)
Power Supply DC 12V
Power Consumption Max. 3W
Weather Proof Ratings IP66
IR Range Up to 115ft (35m)
Dimesnsion 4.7" x 3.3" (118.8x83.6mm)
Weight 1.5lb (700g)
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Resolution 2MP/1080p
Lens 2.8-12mm
Technology HD-TVI
Camera Features Outdoor
