| Product Highlights | |
| Technology | A-HD |
| Number of Channels | 8Ch |
- 8 CH A-HD Video Input, 8 CH 1080P / 720P Recording
- 8 CH DVR supports 4 CH IPC 3MP / 1080P / 960P / 720P / WD1 / D1 recording
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback: 8 CH simultaneously playback
- Search: time / calendar, events ( sensor, motion )
- Express and flexible backup via USB, network
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Android
- Support NAT function, support QR code scanning by mobile phone

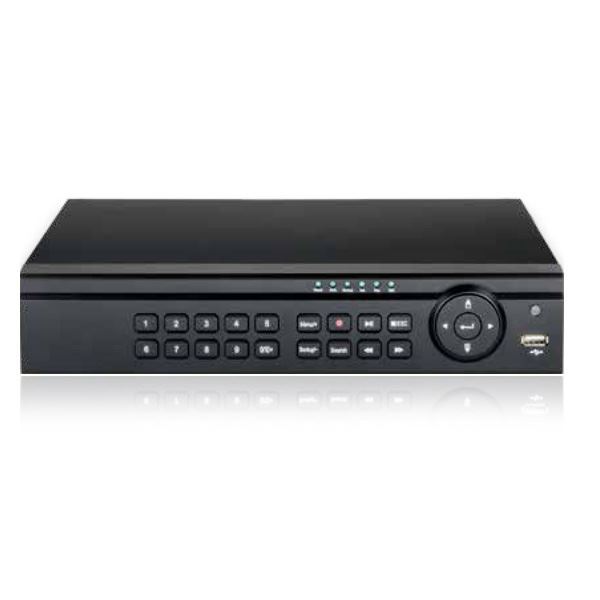

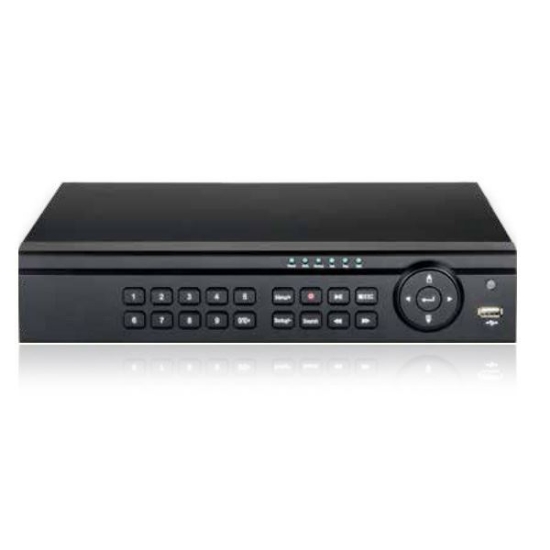

| AVST FD2708 | ||||
| SYSTEM | ||||
| Compression | Standard H.264 High Profile | |||
| CPU | Cortex A9 | |||
| OS | Embedded Linux | |||
| VIDEO | ||||
| Input | BNC x 8 | |||
| IP Input/Access Bandwidth | IPC x 4 / 24Mbps | |||
| Ouput | HDMI x 1 : 1920 x 1080 / VGA x 1 : 1920 x 1080 BNC x 1 : used as CVBS output only | |||
| AUDIO | ||||
| Input | RCA x 4 | |||
| Output | RCA x 1 | |||
| 2-way audio | Take up channel one audio input | |||
| RECORD | ||||
| Resolution | 1080P : 1920 x 1080, 720P:1280 x 720 | |||
| Frame Rate | 720P: 200 fps ( PAL ) 240 fps ( NTSC ) 1080P: 100 fps ( PAL ) 120 fps ( NTSC ) | |||
| Bit Rate | 1 M ~ 4 Mbps | |||
| Encode | VBR / CBR | |||
| Quality | 6 Level | |||
| Mode | Manual, Timer, Motion, Sensor | |||
| File Manager | Lock, unlock, reserving time | |||
| IP Input | ||||
| Resolution | 3MP / 1080P / 960P / 720P / WD1 / D1 | |||
| Frame Rate | 3MP : 50 fps ( PAL ) 60 fps ( NTSC ) 1080P : 100 fps ( PAL ) 120 fps ( NTSC ) 960P/720P : 100 fps ( PAL ) 120 fps ( NTSC ) | |||
| PLAYBACK | ||||
| Playback | 8 CH | |||
| Search | Time / calendar search, event ( motion ) | |||
| Smart Search | Highlighted date and time to display the channel record | |||
| Function | Play, Pause, FF, FB, Digital zoom | |||
| ALARM | ||||
| Mode | Sensor, Motion, Video Loss | |||
| Input | 4 CH | |||
| Output | 1 CH | |||
| Triggering | Record, PTZ move, alarm out, e-mail, etc | |||
| NETWORK | ||||
| Interface | RJ45 10M/100M/1000M adaptive ethernet network port x 1 | |||
| Protocol | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS | |||
| Others | 10 users online, dual stream | |||
| CELLPHONE | ||||
| OS | iPhone, Andriod | |||
| Function | Multi-screen surveillance ( for certain model ) , record, snapshot, PTZ control, save the device list | |||
| I/O | ||||
| HDD | SATA x 1 | |||
| RS485 | RS485 x 1, connect to PTZ or keyboard | |||
| USB | USB 2.0 x 2, one for mouse, another for USB backup device | |||
| OTHERS | ||||
| Power Supply | DC 12V | |||
| Consumption | < 8W ( without HDD ) | |||
| Dimensions | 255 mm x 210 mm x 42 mm (W x D x H) | |||
| Work Environment | -10 ~ 50 °C =, 10% ~ 90% Humidity | |||
