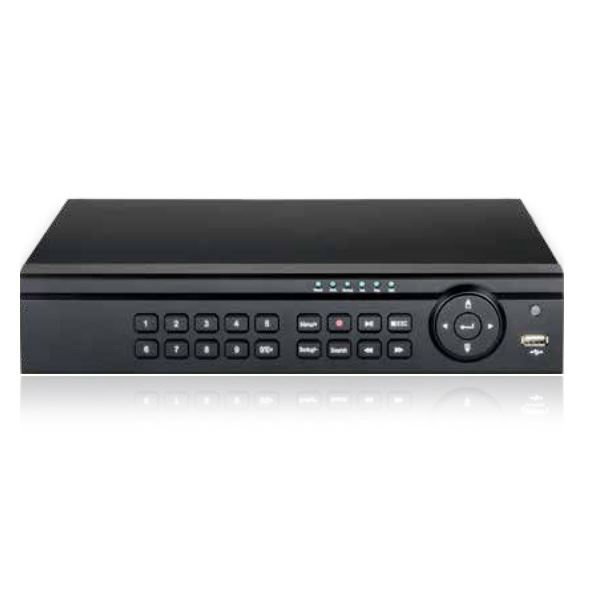

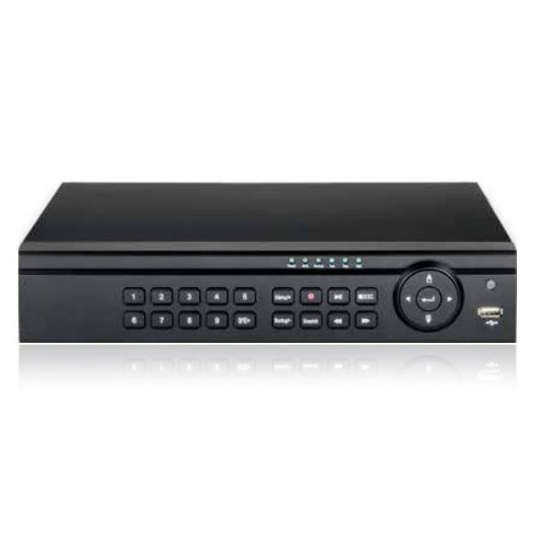

4Ch AHD 1080p Hybrid DVR Recorder (AVST-FD2704)

SKU: 141735
MPN: AVST-FD2704
Call for price

Accepted Payments

AVST-FD2704 is a 4Ch DVR that supports 1080p AHD cameras and Analog CCTV Cameras on the BNC connectors and also takes IP cameras over the network. Also equipped with 4 Audio outputs a VGA and HDMI display ports and takes 1 SATA Drive. The All new AHD FD Series DVRs, combining 3 technologies in 1 System.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Or
Chat Live (Mon–Fri 8am–6pm CT)
  • 4 CH A-HD Video Input, 4 CH 1080P / 720P Recording
  • 4 CH DVR supports 1 CH IPC 1080P/960P/720P/WD1/D1 recording
  • Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor
  • Playback: 4 CH simultaneously playback
  • Search: time / calendar, events ( sensor, motion )
  • Express and flexible backup via USB, network
  • Pentaplex : preview, record, playback, backup and remote access
  • DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
  • Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
  • Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
  • Multi-user online simultaneously
  • Authorization management, log review and device status review
  • HDMI 1080P output, true high resolution display
  • Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
  • Powerful smart phone surveillance supporting iPhone, Android
  • Support NAT function, support QR code scanning by mobile phone



AVST FD2704
SYSTEM
Compression Standard H.264 High Profile
CPU Cortex A9
OS Embedded Linux
VIDEO
Input BNC x 4
IP Input/Access Bandwidth IPC x 1 / 6Mbps
Ouput HDMI x 1 : 1920 x 1080 / VGA x 1 : 1920 x 1080
BNC x 1 : used as CVBS output only
AUDIO
Input RCA x 4
Output RCA x 1
2-way audio Take up channel one audio input
RECORD
Resolution 1080P : 1920 x 1080, 720P : 1280 x 720
Frame Rate 720P: 100 fps ( PAL ) 120 fps ( NTSC )
1080P: 50 fps ( PAL ) 60 fps ( NTSC )
Bit Rate 1 M ~ 4 Mbps
Encode VBR / CBR
Quality 6 Level
Mode Manual, Timer, Motion, Sensor
File Manager Lock, unlock, reserving time
IP Input
Resolution 1080P / 960P / 720P / WD1 / D1
Frame Rate 1080P: 12 fps ( PAL ) 15 fps ( NTSC )
960P/720P: 25 fps ( PAL ) 30 fps ( NTSC )
PLAYBACK
Playback 4 CH
Search Time / calendar search, event ( motion )
Smart Search Highlighted date and time to display the channel record
Function Play, Pause, FF, FB, Digital zoom
ALARM
Mode Sensor, Motion, Video Loss
Input 4 CH
Output 1 CH
Triggering Record, PTZ move, alarm out, e-mail, etc
NETWORK
Interface RJ45 10M/100M/1000M adaptive ethernet network port x 1
Protocol TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Others 10 users online, dual stream
CELLPHONE
OS iPhone, Andriod
Function Multi-screen surveillance ( for certain model ) , record, snapshot, PTZ control, save the device list
I/O
HDD SATA x 1
RS485 RS485 x 1, connect to PTZ or keyboard
USB USB 2.0 x 2, one for mouse, another for USB backup device
OTHERS
Power Supply DC 12V
Consumption < 6W ( without HDD )
Dimensions 255 mm x 210 mm x 42 mm (W x D x H)
Work Environment -10 ~ 50 °C=, 10% ~ 90% Humidity
