Product Highlights | |
Resolution | 1MP/720p |
Lens | 3.6mm |
Camera Features | Outdoor |
Technology | A-HD |
- 1.3MP AHD 720P High Definition, 1/3” Mega Pixel Sensor
- Video Output: HD 720P@30fps (Real Time)
- 3.6mm Mega Pixel wide angle Lens
- High-quality IR Cut Filter
- 24pcs Smart IR Leds, 100ft IR Distance
- Weather Proof: IP66

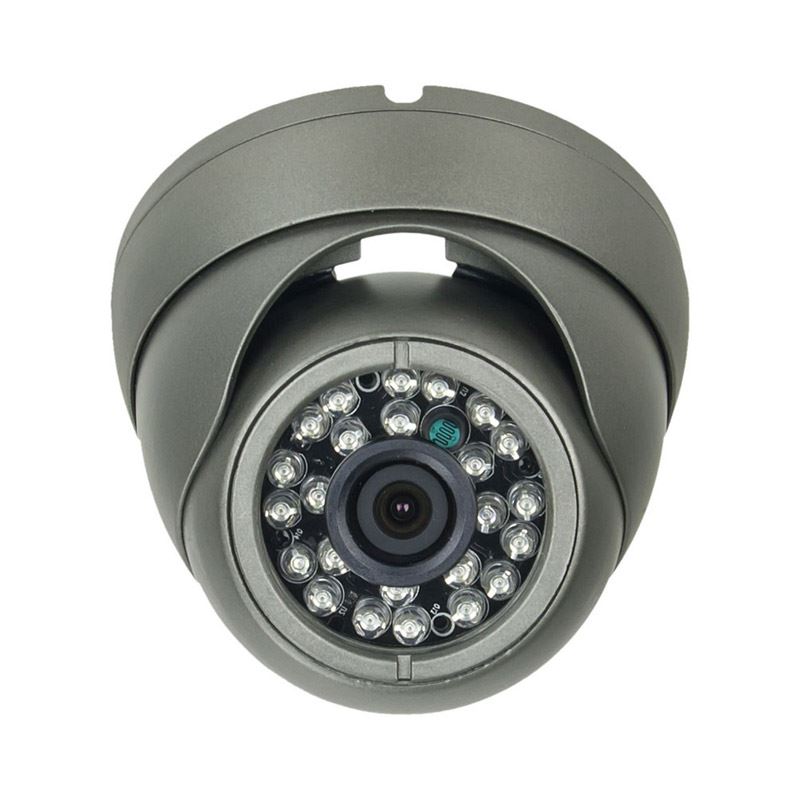

AIB-B1022 | |
Image Sensor | 1 / 3 " Mega Pixel Sensor |
Effective Pixels | 1.3 Mega Pixels |
Built-in Lens | 3.6mm Mega Pixel Lens |
Signal System | PAL/NTSC |
Horizontal Resolution | PAL:1280X720P 25F/S NTSC:1280X720P 30F/S |
Sync. System | Internal Sync. |
Sensor Area | 4.8mmx3.6mm |
Video Output | 75Ω BNC |
S/N Ratio | More than 50dB (AGC OFF) |
White Balance | Auto Tracking White Balance |
Shutter Speed | 1/25~50,000 Sec. |
Illumination for Infrared Switching | 3 Lux |
Infrared Wavelength | 850nm |
Minimum Illumination | 0 Lux (Infrared Lamps Turn on) |
IR Leds | 24 pcs |
IR Radiation Distance | 20m |
Working Temperature | -50°F~-122°F (-10°C~-50°C) |
Storage Temperature | -68°F~-140°F (-20°C~-60°C) |
Power Requirement | DC12V, Max Power Comsumption Less Than 5W (When the infrared lamps turn on) |
