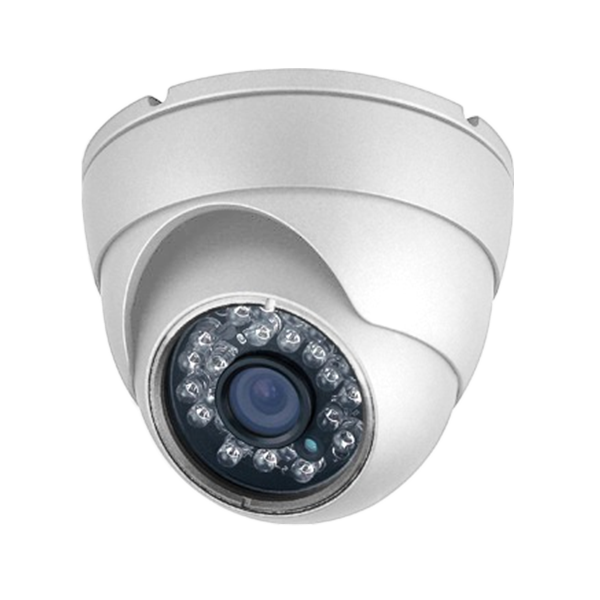

1.3MP AHD Eyeball Dome Camera 720p 3.6mm (AIB-1022)

SKU: 141720
MPN: AIB-1022

Accepted Payments

1.3MP High resolution 720p A-HD Security Dome Camera, Eyeball design and weatherproof rating, a great HD over coax AHD dome camera for both indoor and out door, a 3.6mm wide angle lens and night vision for up to 100ft.
Live chat
Have a question? ASK AN EXPERT, Call 877-366-2444
Chat Live (Mon–Fri 8am–6pm CT)


  • A-HD 720p security dome camera HD flawless video
  • 3.6mm HD wide angle Fixed Lens
  • Video Balun compatible
  • Minimum Illumination - 0 Lux with IR on
  • ICR Auto Switch : filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image
  • Color-B/W Auto Switch : display color image in daytime and become monochrome automatically at night
  • Auto White Balance : Adjust the color temperature according to the environment automatically
  • DNR : Reduce noise from brightness and color signal to save storage room under low illumination condition
Image Sensor 1 / 4 "CMOS
Pixels 1280 x 720
Signal System PAL / NTSC
Min. Illumination 0 Lux ( LED ON )
Lens 3.6 mm Fixed Lens
IR Distance 10~20m
Water-proof IP66
Video Output BNC x 1
Resolution 720P ( 1280 x 720 )
Frame Rate 30 fps ( 60 Hz ), 25 fps ( 50 Hz )
ICR Yes ( Day & Night )
S/N Ratio >52dB (AGC Off)
Electronic Shutter 1 / 50s ~ 1 / 67500s
White Balance Auto White Balance
Power Supply DC 12V ( ± 10 % )
Working Environment - 20 °C ~ 50 °C, 10 % ~ 90 % humidity
Dimensions ø93mm × 62mm
Weight (net) 279g
Write your own review
  • Only registered users can write reviews
  • Bad
  • Excellent
Products specifications
Resolution 1MP/720p
Lens 3.6mm
Camera Features Outdoor
Technology A-HD
