| Product Highlights | |
| Technology | HD-TVI, Hybrid |
| Number of Channels | 32Ch |

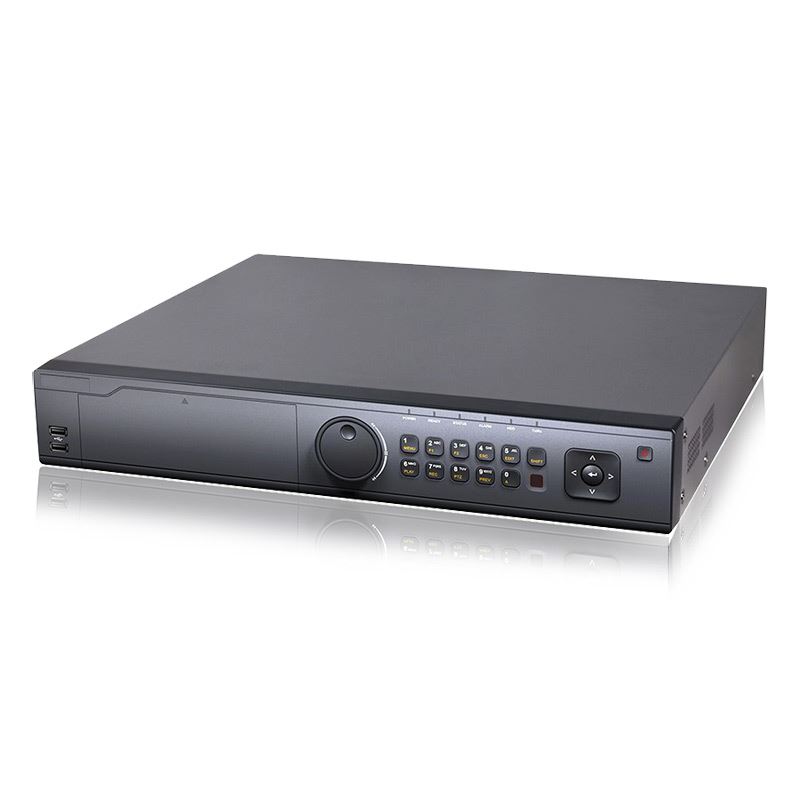

This 32Ch HD-TVI Tribrid DVR (LTD8432T-FA) is Linux based standalone DVR, requires virtually no setup at all, Mix and match between HD-TVI cameras or CCTV standard cameras (Using BNC connectors over Coax) and IP cameras using your existing network, With room for 4 SATA hard drives this incredible DVR is capable of hosting up to 16TB of hard desk space for maximum storage utilizing H.264 video compression, easy to setup and will connect to both your computer Monitor and your large screen TV using VGA and HDMI. And with Remote live view and Playback on mobile devices (iOS & Android) The LTD8432T-FA will make sure you keep an eye on your home or business with a single finger touch.
- H.264 & Dual-stream video compression
- Support HD-TVI/analog/IP camera triple hybrid
- Full channel 1080P@15fps, 720P@30fps recording
- HDMI and VGA output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Support up to 32-ch synchronous playback
| Video / Audio input | |
| Video compression | H.264 |
| Analog and HD-TVI video input | 32ch BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
| IP input | up to 8Ch |
| Audio compression | G.711u |
| Audio input | 4-ch, RCA(2.0 Vp-p, 1 kΩ) |
| Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1 kΩ) |
| Video / Audio output | |
| HDMI output / VGA output | Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF |
| Frame rate | Main stream: 1/16 fps ~ Real time frame rate |
| Video bit rate | 32 Kbps-4 Mbps |
| Audio output | 1-ch, RCA (Linear, 1 kΩ) |
| Audio bit rate | 64 Kbps |
| Dual-stream | Support |
| Stream type | Video, Video & Audio |
| Synchronous playback | 32ch |
| Playback resolution | 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF |
| Network | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 4 SATA interfaces for 4 HDDs; 1 eSATA interface |
| Capacity | Up to 4TB capacity for each disk |
| External interface | |
| Network interface | 1:10M / 100M/1000M self-adaptive Ethernet interface |
| Serial interface | RS-232, RS-485, Keyboard |
| USB port | 3 × USB2.0 |
| Alarm in/out | 16/4 |
| General | |
| Power supply | 100 ~ 240VAC, 47 ~ 63HZ |
| Power Consumption | ≤ 65W |
| Working temperature | -10 °C ~ +55 °C(14°F - 131°F) |
| Working humidity | 10% ~ 90% |
| Chassis | 19-inch rack-mounted 1.5U chassis |
| Dimension | 445 × 390 × 70 mm (17.5 × 15.3 × 2.7 inch) |
| Weight | ≤5Kg (11.0lb) |
