Manufacturer: UnixCCTV

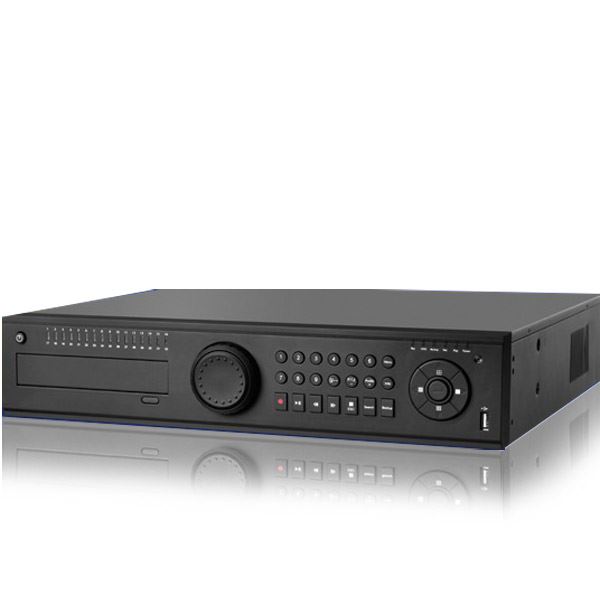

32CH HD-TVI Hybrid Security DVR (TVST-TR2732)

SKU: 141710
MPN: TVST-TR2732
Call for price
A Great 32Ch HD-TVI Hybrid DVR, Connect your existing analog cameras side by side with high resolution 1080p HD-TVI security cameras, perfect solution for expansion and upgrade, this DVR (model# TVST-TR2732) will automatically detect video signal from your analog cameras at up to 960H and your HD-TVI cameras at 1080p full HD, using H.264 compression and up to 8 SATA hard drives of storage, one DVR multiple technologies on one screen with VGA and HDMI output that would let you chose whats displayed for a store font screen and also compatible with Apple and Android.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Product Highlights
TechnologyHD-TVI, Hybrid
Number of Channels32Ch
  • Full GUI with Alpha Blending
  • Individual Setting of Resolution, Frame Rates & Picture Quality
  • Instant Replay
  • Digital Zoom (Live & Playback)
  • Mouse Control
  • Weekly Scheduler with Holiday by 10 min Setting
  • Covert, Disable & Private Function of Cameras
  • Motion Detection with 576 Area Settings
  • Relay Alarm Output
  • PTZ Control by RS-485
  • Daylight Saving Time and Network Time Setting
  • Multi-User Authority up to 8 Users
  • De-interlacer upon Live & Playback
  • 22 Languages with Full Graphic
  • Individual Network Port Setting
  • Auto Deletion
  • Import and Export the Configuration
  • POS Interface
  • Dual CODEC Engine for Independent Video Transmission
  • Interactive Setup via Network



TVST-TR2732
VideoCamera Input32 BNC
Individual HD/AnalogAll Hybrid
Available SourceTVI 720p25,30/1080p25,30/Composite/960H/Mixed
Output1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT)
AudioAudio Input32 RCA
Output1 RCA
Sensor In4 (NC, NO selectable)
Alarm out1 Relay
Operating SystemEmbedded Linux OS
DisplaySpeedReal Time
Resolution (Pixel)1280×1024, 1280×720, 1920×1080
Screen Split

1 / 4 / 6 / 8 / 9 / 13 / 16 / 32



RecordingCODECH.264 / JPEG for 3G, Dual CODEC
Resolution (Pixel)1080p (1080p @15 fps)
720p (720p @30 fps)
960H, 720H (Composite, 960H)
Picture Quality4 Steps (Super, High, Medium, Low)
SpeedNTSC : 960fps@720p / 240fps@1080p
PlaybackDisplay1 / 4 / 8 / 9 / 13 / 16
Search ModeCalendar, Event ,POS , Panorama, Thumbnail
SpeedNTSC : 480fps@1080p, 960fps@720p
Fast/Slow speedNormal, REW & FF [recorded speed ×2, ×4, ×8,×16,×32,×64,×1/2,×1/4], Frame to frame, Pause
NetworkNetwork InterfaceGigabit Ethernet
Speed100fps@720p
ProtocolTCP/IP, HTTP, DHCP
ApplicationWindows 7 / 8 (PC Client system & IE)/MAC
Web BrowserInternet Explorer, Safari, FireFox, Chrome
Smart phone AppSuper Live Pro : Android. Super Live HD: iPhone for Live & Search
BackupInterfaceUSB 2.0 × 4
 Backup deviceExternal HDD, CD & DVD-RW, Network, Thumb Drive
The Number of HDD8 SATA (No capacity limit ; 4TB of more)
OthersPower Consumption90W
Operating Temperature5 ~40°C(41~104°F)
Relative HumidityMaximum 80% non-condensing
Dimension13.39(W)×9.84(D)×2.36(H)inches / 340(W)×250(D)×60(H)mm
