Manufacturer: LTS Security

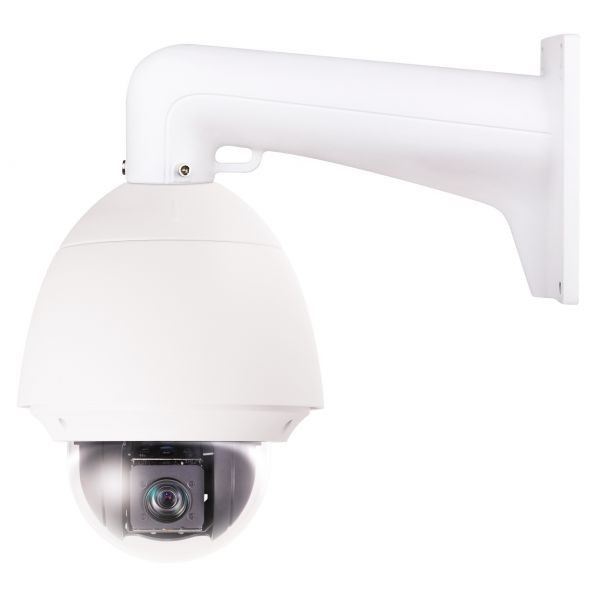

1080p 30X Zoom HD-TVI PTZ Speed Dome Camera (PTZH742X30)

SKU: 121689
MPN: PTZH742X30
$629.99
$799.99
PTZH742X30, 2MP 1080p HD-TVI PTZ Speed Dome Camera, with 30X Optical Zoom and 16X Digital, True Day and night HD-TVI PTZ Camera, with OSD and Many other features.
Share

Share this link via

Or copy link

  • Pay with Ease
    •
    •
    •
    •
  • Secure SSL Encryption
  • Fast, Insured Shipping
  • 30-Day Money-Back Guarantee
  • Hassle-Free Warranty
  • Lifetime Customer Support
Free shipping
  • 2MP CMOS Image Sensor
  • Full HD 1080P Video Output
  • Adopts HDTVI Technology
  • 30X optical zoom, 16X digital zoom
  • OSD Menu via UTC technology
  • Privacy Masking, 3D DNR, D-WDR, EIS
  • 3D intelligent positioning
  • True Day&Night



PTZH742X30
Image Sensor 1 / 3"Sensor
Effective Pixel3270K
Horizontal Resolution1100TVL
Signal SystemPAL / NTSC
Min. IlluminationColor: 0.2Lux@( F1.6,AGC ON)
B/W: 0.02Lux@( F1.6,AGC ON)
White BalanceAuto / Manual / ATW / Indoor / Outdoor
AGCAuto / Manual
S / N Ratio≥ 50dB
3D DNRSupport
Digital WDRSupport
EISSupport
Backlight compensationSupport
Shutter Time1-1/10,000s
Day & NightIR Cut Filter
Digital Zoom16X
Privacy Mask8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Focus ModeAuto / Semiautomatic / Manual
Lens
Focal Length4-120mm, 30X
Zoom SpeedApprox.3.0s(Optical Wide-Tele)
Angle of View58-1.7 degree(Wide-Tele)
Min. Working Distance10-1500mm (Wide-Tele)
Aperture RangeF1.6-F4.4
Pan and Tilt
Pan / Tilt RangePan: 360° endless; Tilt: -5° ~ 90° (Auto Flip )
Pan / Tilt SpeedPan Manual Speed: 0.1° ~250°/s, Pan Preset Speed: 300°/s
Tilt Manual Speed: 0.1° ~150°/s, Tilt Preset Speed: 200°/s
Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
Number of Preset256
Patrol8 patrols, up to 32 presets per patrol
Pattern4 patterns, with the total recording time not less than 10 minutes
Power-off MemorySupport
Park ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position DisplayOn / Off
Preset FreezingSupport
Scheduled TaskPreset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Input/ Output
Monitor Output1 HD TVI output , 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 InterfaceHalf-duplex mode, Pelco-P, Pelco-D protocol
UTC functionSelf-adaptive PELCO_C
General
Menu LanguageEnglish, Chinese
Power 24VAC; Max. 20W (Heater On), Max. 12W(Heater Off);
Working Temperature-22°F-149°F(-30 °C-65°C);
90% or less
Protection LevelIP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact ProtectionIEC60068-275Eh, 20J; EN50102, up to IK10
Dimension Φ8.66"×12.00"(Φ220×305mm )
Weight (approx.)11.02Ibs(5Kg)
Products specifications
Resolution2MP/1080p
Camera FeaturesWDR, Outdoor
TechnologyHD-TVI
