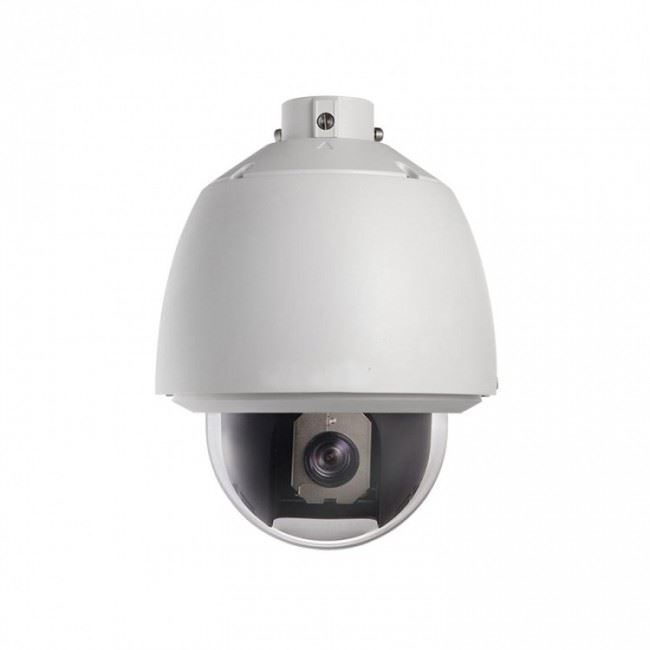

- • Outdoor PTZ Speed Dome
• 2MP(1920x1080 Resolution)
• Multiprotocol Video Output
• TVI, AHD, CVI, Analog
• 25x Optical Zoom, 16x Digital Zoom
• Day & Night With ICR
• Privacy Masking, 3D DNR, D-WDR
• 3D Intelligent Positioning
• AC24V
| MODEL | AP312-OD/25X |
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max Image Resolution | 2MP (1920x1080) |
| Min Illumination | Color: 0.005 Lux @ (F1.6, AGC On), B/W: 0.001 Lux @ (F1.6, AGC On) |
| White Balance | Auto, Manual, ATW, Indoor, Outdoor |
| AGC | Auto, Manual |
| 3D DNR | Support |
| Digital WDR | Support |
| Backlight Compensation | Support |
| Shutter Time | 1 Sec to 1/10,000 Sec |
| Day & Night | IR Cut Filter |
| Privacy Mask | 8 Privacy Mask Programmable, 8 Zones |
| Focus Mode | Auto, Semi-auto, Manual |
| Lens | |
| Focal Length | 4.8-120mm: 25x Optical Zoom, 16x Digital Zoom |
| Zoom Speed | Approx 3.6 Sec (Optical Wide-Tele) |
| Angle of View | 58-1.7° (Wide-Tele) |
| Min Working Distance | 10-1500mm (Wide-Tele) |
| Aperture | F1.6-F3.5 |
| Pan and Tilt | |
| Pan Range | 360° Endless |
| Pan Speed | Configurable, from 0.1°-250° Per Sec, Preset Speed: 250° Per Sec |
| Tilt Range | -5°-90° (Auto Flip) |
| Tilt Speed | Configurable, from 0.1°-150° Per Sec, Preset Speed: 150° Per Sec |
| Number of Preset | 256 |
| Patrol | 10 Patrols, Up to 32 Presets Per Patrol |
| Pattern | 5 Patterns |
| Power Off Memory | Support |
| Park Action | Preset, Patrol, Pattern, Pan Scan, Tilt Scan, Frame Scan, Random Scan, Panorama Scan |
| PTZ Position Display | On/Off |
| Preset Freezing | Support |
| Input/Output | |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| RS-485 Interface | Half Duplex Mode, Self Adaptive Hikvision, Pelco-P, Pelco-D Protocol |
| UTC Function | UTC protocol (HIKVISION-C protocol in previous DVR) |
| General | |
| Power | AC24V, Max 24W |
| Working Temperature | -22°-150°F |
| Protection Level | IP66 Rated Weatherproof |
| Mounting | Various Mounting Modes (Optional) |
| Dimensions | 8.75" x 14" |
| Weight | Approx 15 LBS |
Products specifications
| Resolution | 2MP/1080p |
| Camera Features | WDR, Outdoor |
| Technology | HD-TVI |
