KEY FEATURES
- Full GUI with alpha blending
- Individual setting of resolution, frame rates and picture quality
- Instant Replay
- Digital Zoom (Live & Playback)
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert, Disable and Private function of cameras
- Motion Detection with 352 area settings
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority up to 8 Users
- De-interlacer upon live and playback
- 22 languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Mirroring
- POS Interface
- Dual CODEC engine for independent video transmission
- Interactive setup via network
SPECIFICATIONS

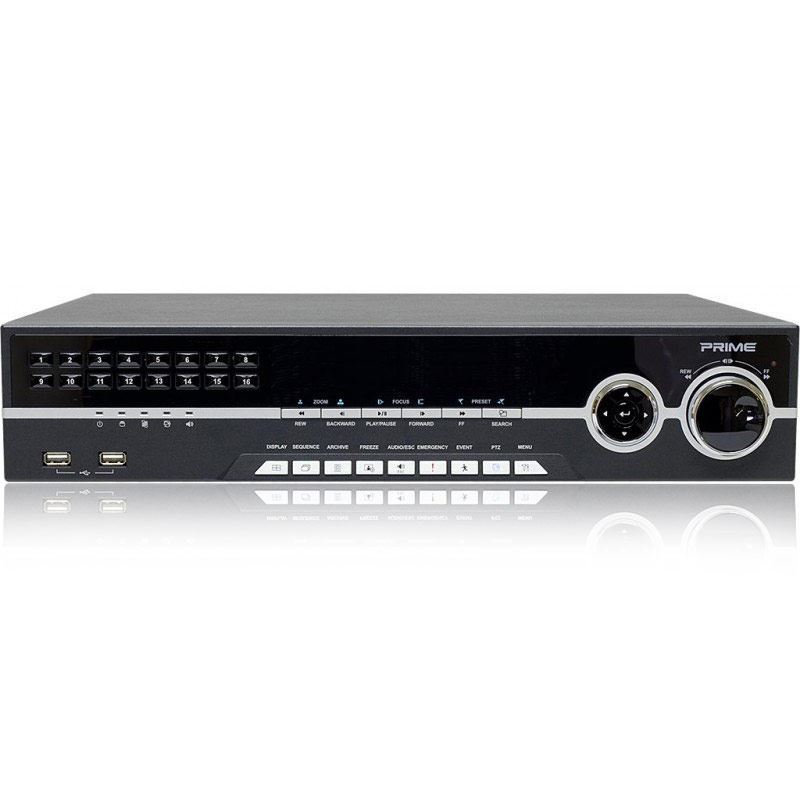

| XVST MAGIC-PLS32M | |
| Video | |
| Camera Input | 32 BNC |
| Individual HD/Analog Selectable | Quattro-brid |
| Available Source | HD-SDI 720p25,30,50,60/HD-SDI 1080p25,30,50,60/1080i50,60/Composite/960H/Mixed/Another DVR |
| Output | 1 HDMI (Main Display or Programmable HD Spot) 1 VGA (Main Display or Programmable HD Spot) 1 Composite (Programmable SPOT) |
| Audio & Etc | |
| Input/Output | 16 × RCA Input / 1 × RCA Output |
| Sensor In | 16 (NC, NO Selectable) |
| Alarm Out | 14 TTL, 2 Relay |
| Operating System | Embedded Linux OS |
| Display | |
| Speed | Real Time |
| Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080 |
| Split Screen | 1,4,6,8,9,13,16,25,32 |
| Main Recording | |
| CODEC | H.264 |
| Resolution (Pixel) | 720p, 1080p, 960H, 720H, WCIF, CIF Mixed |
| Picture Quality | 4 steps (Super, High, Medium, Low) |
| Speed | 480fps@1080p(NTSC) |
| Sub Stream | |
| CODEC | H.264 |
| Condition | Main Recording is 1080p, 720p |
| Resolution (Pixel) | 480x256 |
| Playback | |
| Display | 1,4,6,8,9,13,16,25,32 |
| Search Mode | Calendar, Event ,POS , Panorama, Thumbnail |
| Speed | 480fps@1080p (NTSC) |
| Fast/Slow Speed | Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
| Network | |
| Network Interface | Gigabit Ethernet X 2 |
| Speed | 180fps@1080p (NTSC) |
| Protocol | TCP/IP, HTTP, DHCP |
| Application | Windows 7 / 8 (PC Client system& IE) / MAC OS X |
| Web Browser | Internet Explorer, Safari, Chrome, Firefox |
| Smart Phone APP | Android, iPhone for Live and Search |
| Backup | |
| Interface | USB 2.0 X 3 |
| Backup Device | External HDD, CD & DVD-RW, Network, Thumb Drive |
| The Number of HDD | 4 × SATA + 1 × eSATA (up to 12 bays, no capacity limit; 4TB or more) |
| Backup | |
| Power Consumption | 150W |
| Operating Temperature | 5~40°C (41~104F°) |
| Relative Humidity | Maximum 80% non-condensing |
| Dimension | 430(W)×420(D)×88(H)mm |
Products specifications
| Technology | HD-SDI, Hybrid |
| Number of Channels | 32Ch |
